SELECT A DIAGRAM

01 - Cover Sheet

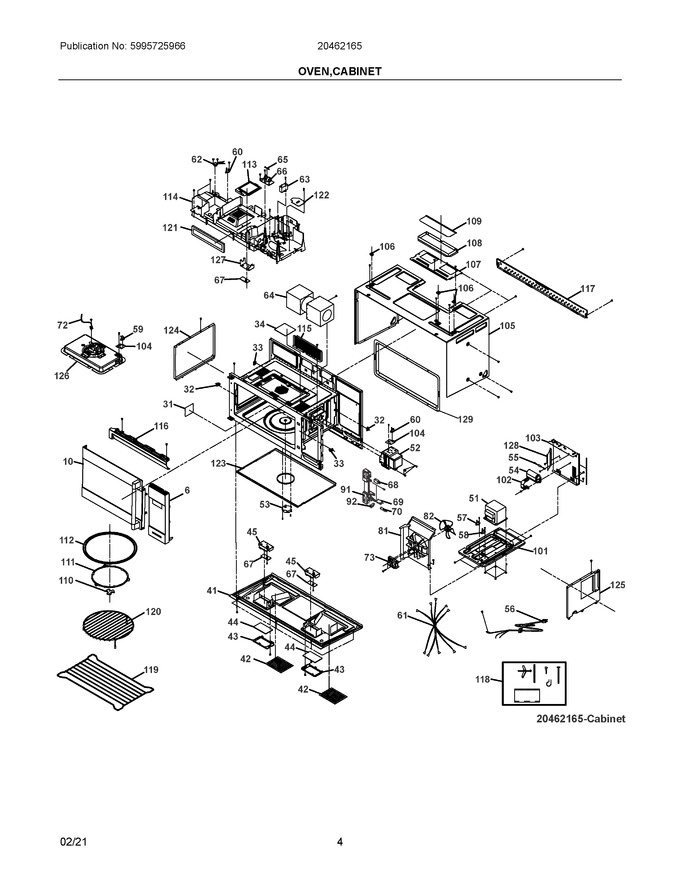

02 - Oven,cabinet


03 - Control Panel,door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304525107		Control Panel, Assembly, Stainless				$ 323.32
10	5304525102		Door Assembly, Complete, Stainless				$ 313.75
31	5304509435		Cover, Waveguide			Immediately	$ 13.74
32	5304509642		Support A, Shelf			Immediately	$ 14.55
33	5304509643		Support B, Shelf				$ 13.83
34	5304523255		Glass, Lamp, Cavity		Appelez-nous	-
41	5304523256		Base, Assembly				$ 127.00
42	5304517871		Filter, Grease			Immediately	$ 26.91
43	5304509441		Frame, Lens Holder		Appelez-nous	-
44	5304509443		Lens, Cooktop Lamp, Glass		Appelez-nous	-
45	5304509442		Cover, Lamp				$ 59.09
51	5304515184		Transformer, Power, Hv			Immediately	$ 423.01
52	5304509470		Magnetron, High Voltage			Immediately	$ 436.17
53	5304513471		Motor, Turntable			Immediately	$ 92.20
54	5304509478		Capacitor, High Voltage			Immediately	$ 153.84
55	5304515185		Diode, High Voltage			Immediately	$ 25.83
56	5304509489		Power Cord, Electric		Appelez-nous	-
57	5304513462		Thermostat, 120/0 *v			Immediately	$ 25.54
58	5304513463		Thermostat, 70/40 *v			Immediately	$ 26.99
59	5304515313		Thermostat, 160/95			Immediately	$ 31.66
60	5304513461		Thermostat, 160/95 *v			Immediately	$ 26.95
61	5304518854		Harness, Wiring, Main				$ 140.25
62	5304509652		Sensor, Humidity				$ 305.46
63	5304509453		Capacitor, Start				$ 141.75
64	5304509624		Motor, Vent				$ 425.32
65	5304517874		Fuse, Noise Filter			Immediately	$ 12.75
66	5304525109		Filter, Noise, Electronic				$ 86.00
67	5304517872		Lamp, Led			Immediately	$ 44.24
68	5304509460		Switch, Interlock, Primary			Immediately	$ 45.27
69	5304520021		Microswitch, Monitor			Immediately	$ 16.68
70	5304509460		Microswitch, Secondary   (Replaces: 5304520020)			Immediately	$ 45.27
72	5304514280		Thermister				$ 48.29
73	5304509471		Motor, Cooling Fan			Immediately	$ 150.42
81	5304509472		Duct, Cooling Fan				$ 79.52
82	5304509473		Fan Blade, Cooling Fan				$ 15.47
91	5304523259		Bracket, Interlock, Upper			Immediately	$ 18.56
92	5304509458		Lever, Switch			Immediately	$ 10.17
101	5304509418		Base, Transformer		Appelez-nous	-
102	5304509477		Retainer, Capacitor Strap		Appelez-nous	-
103	5304509481		Plate, Air Guide		Appelez-nous	-
104	5304515183		Thermostat, Assembly, W/bracket			Immediately	$ 29.59
105	5304509483		Cabinet, Outer Casing, Black				$ 374.22
106	5304509436		Mounting Nut Kit			Immediately	$ 14.71
107	5304513481		Cover, Vent Motor				$ 51.38
108	5304509485		Adapter, Exhaust, Damper Frame			Immediately	$ 25.32
109	5304509486		Damper, Door, Exhaust Adapter			Immediately	$ 27.73
110	5304509622		Coupler, Turntable/motor				$ 21.02
111	5304509438		Support, Turntable Ring				$ 52.20
112	5304525110		Tray, Turntable		Appelez-nous	-
113	5304509450		Cover, Lamp, Oven Cavity				$ 18.62
114	5304512526		Duct, Air, Main		Appelez-nous	-
115	5304509456		Cover, Control Shield, Right				$ 19.52
116	5304509646		Vent, Stainless, Front			Immediately	$ 135.33
117	5304509487		Plate, Wall Mounting, Rear			Immediately	$ 59.63
118	5304513469		Mounting Kit, W/templates			Immediately	$ 62.38
119	5304509647		Shelf, Wire				$ 151.09
120	5304523266		Rack, Round, Wire				$ 80.96
121	FRPAMRAF		Filter, Charcoal, 2" X 10   (Replaces: 5304464577)			Immediately	$ 37.86
122	5304523267		Deflector, Air		Appelez-nous	-
123	5304523268		Panel, Insulator, Lower		Appelez-nous	-
124	5304523269		Panel, Insulator, Lh Side		Appelez-nous	-
125	5304523270		Panel, Insulator, Rh Side		Appelez-nous	-
126	5304512527		Fan Assembly, Convection				$ 303.63
127	5304512524		Bracket, Led Lamp		Appelez-nous	-
128	5304509480		Vent, Air, Magnetron				$ 57.65
129	5304525111		Back Panel, Assembly, Heat Insulator		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
