SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven,cabinet

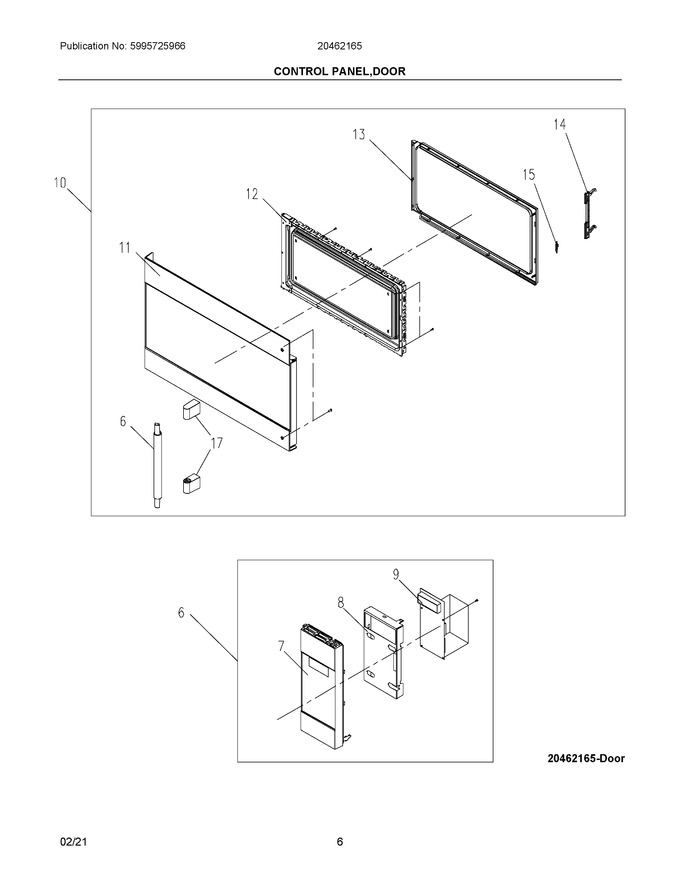

03 - Control Panel,door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304525107		Control Panel, Assembly, Stainless				$ 323.32
7	5304525108		Frame, Control Panel, Stainless				$ 189.19
8	5304509634		Panel, Control Mount, Bracket				$ 50.32
9	5304512521		Pc Board, Main, Control/power				$ 424.36
10	5304525102		Door Assembly, Complete, Stainless				$ 313.75
11	5304525103		Panel, Door, Stainless, Outer		Appelez-nous	-
12	5304525104		Panel, Inner Door, Black				$ 182.22
13	5304509640		Frame, Choke Cover, Inner Door				$ 50.61
14	5304525298		Latch, Door			Immediately	$ 10.85
15	5304521953		Spring, Door Latch				$ 7.23
16	5304525105		Handle, Door, Stainless		Appelez-nous	-
17	5304525106		Holder, Handle, Black Stainless		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
