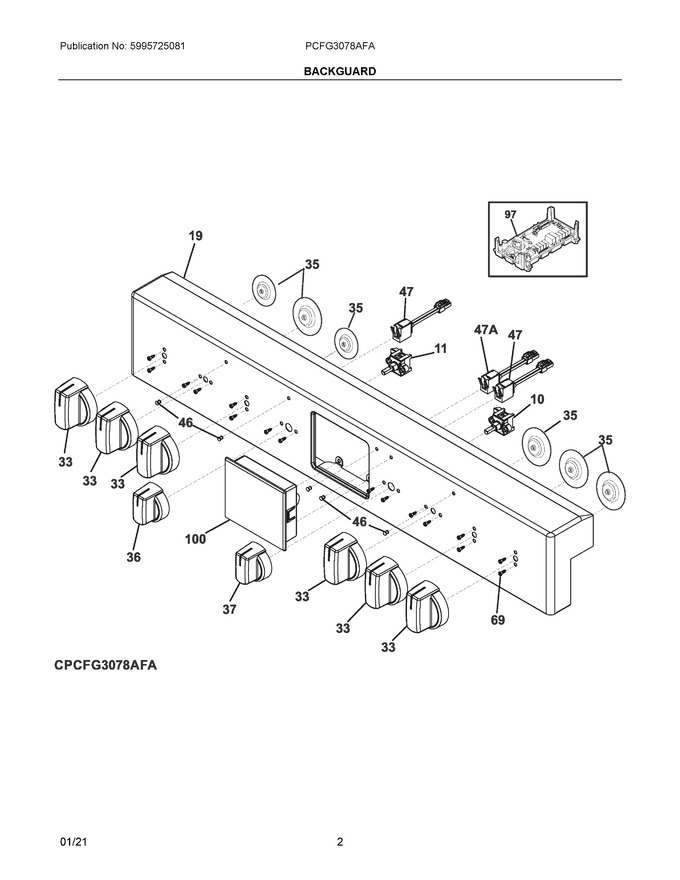

02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 808843108 | Potentiometer, Oven Temp |
|
Immediately | $ 76.97 | ||||
| 11 | 5304500591 | Potentiometer, Oven Mode |
|
Immediately | $ 126.30 | ||||
| 19 | 5304523886 | Panel, Control, Stainless |
|
$ 294.80 | |||||
| 33 | 809137805 | Knob, Top Valve, Stainless |
|
$ 97.07 | |||||
| 35 | 5304508440 | Bushing, Insulating |
|
Immediately | $ 11.38 | ||||
| 36 | 809137904 | Knob, Selector, Oven |
|
$ 87.97 | |||||
| 37 | 809137903 | Knob, Temperature, Oven |
|
$ 94.04 | |||||
| 46 | 316557300 | Lens-light/lamp, Indicator, Clear |
|
Immediately | $ 16.77 | ||||
| 47 | 316022508 | Light/lamp, Indicator, Blue, Oven |
|
$ 27.30 | |||||
| 69 | 5303288565 | Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg |
|
$ 3.12 | |||||
| 97 | 5304518023 | Pc Board, Assembly, Ovc3 |
|
Immediately | $ 248.27 | ||||
| 100 | 5304534002 | Control Assembly, Pro, Gas (Replaces: 5304523891) |
|
Immediately | $ 591.10 | ||||
| 47A | 316022510 | Light/lamp, Indicator, Blue, Preheat |
|
$ 31.10 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 5304517680 | Harness, Wiring, Oven Control |
|
$ 46.41 | |||||
| NI | 5304520393 | Spacer, Foam Block, 2" X 1", W/adhesive |
|
- |
