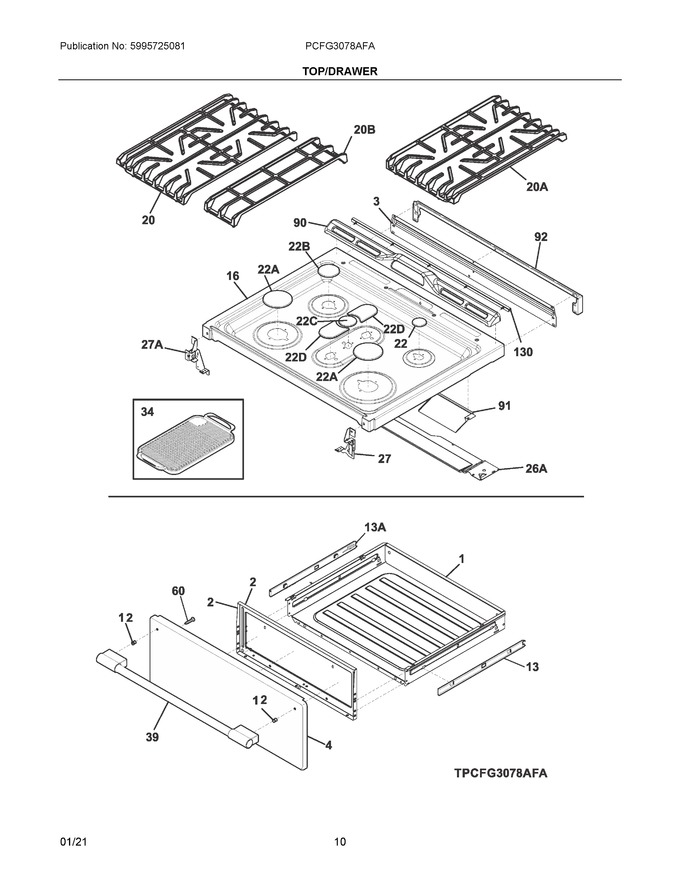

04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807108405		Drawer, Warmer				$ 125.44
2	5304527988		Liner, Drawer   (Replaces: 5304511880)			Immediately	$ 26.54
3	5304514133		Shield, Rear Wall, Upper				$ 34.89
4	5304494412		Panel, Drawer Front, Stainless				$ 98.53
12	5304494420		Nut, Hour Glass, Handle Mtg.				$ 12.76
13	316415000		Glide, Warmer, Inner Rh				$ 58.82
16	5304523895		Maintop, Stainless				$ 317.00
20	5304526186		Grate, Left				$ 293.54
22	5304520370		Cap, Burner, Small, Black			Immediately	$ 15.62
27	5304514123		Bracket, Mounting, Rh, Cooktop				$ 13.65
34	5304495353		Griddle			Immediately	$ 166.84
39	5304494423		Handle, Asm			Immediately	$ 314.69
60	5303288572		Screw-handle Mtg		Appelez-nous	-
90	5304523888		Trim, Rear Vent, Stainless				$ 85.04
91	5304514181		Deflector, Moisture, (2)				$ 10.63
92	5304520261		Rear Filler Kit, Fcfs Range, Black			Immediately	$ 163.81
130	808931802		Seal, Maintop, Silicone, Rear				$ 40.19
13A	316415001		Glide, Warmer, Inner Lh			Immediately	$ 58.82
20A	5304526187		Grate, Center				$ 190.35
20B	5304526188		Grate, Right				$ 190.35
22A	5304520372		Cap, Burner, Large, Black			Immediately	$ 22.75
22B	5304520371		Cap, Burner, Medium, Black			Immediately	$ 19.72
22C	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
22D	808851601		Cap, Simmer Burner, Outer, (2)				$ 89.31
26A	5304514126		Bracket, Support, Rear, Chassis		Appelez-nous	-
27A	5304514124		Bracket, Mounting, Lh, Cooktop				$ 13.65
NI	316260800		Screw-shoulder, W/shoulder, #8-18 X 1/2				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
