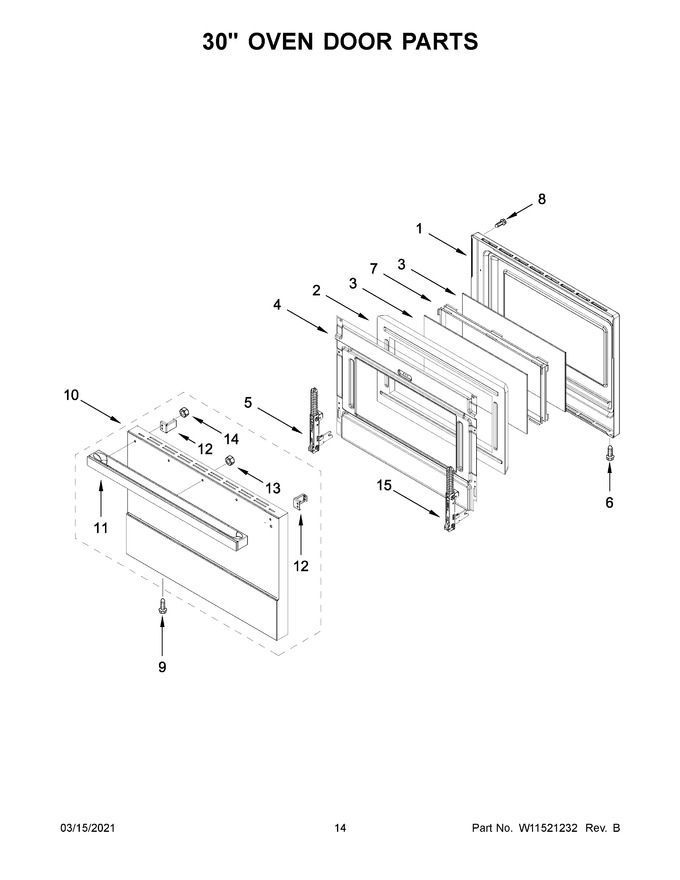

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11318831 | Liner, Door (Replaces: W11036771) |
|
Immediately | $ 346.10 | ||||
| 2 | W11688537 | Insulation, Door (30") (Replaces: W11413190) |
|
$ 107.83 | |||||
| 3 | W11318823 | Glass, Inner (Replaces: W11184409) |
|
$ 149.01 | |||||
| 4 | W11318344 | Retainer, Glass (Replaces: W11194821) |
|
Immediately | $ 153.31 | ||||
| 5 | W11568941 | Hinge, Door (left) (Replaces: W11096978) |
|
Immediately | $ 103.51 | ||||
| 6 | W11193480 | Screw (Replaces: W10607120) |
|
$ 12.62 | |||||
| 7 | WPW10272594 | Frame, Glass (Replaces: W10272594) |
|
Immediately | $ 169.19 | ||||
| 8 | W11712404 | Screw (Replaces: W10898280) |
|
Immediately | $ 12.66 | ||||
| 9 | W10162096 | Screw |
|
$ 18.77 | |||||
| 10 | W11315556 | Assembly, Outer Door Glass (includes Handle) (Replaces: W10870221) |
|
$ 1,895.78 | |||||
| 11 | W11317893 | Handle, Door (Replaces: W11125541) |
|
- | |||||
| 12 | W11317894 | Bracket, Handle (Replaces: W11194816) |
|
- | |||||
| 13 | W11198435 | Nut |
|
- | |||||
| 14 | 999299 | Nut |
|
- | |||||
| 15 | W11568813 | Hinge, Door (right) (Replaces: W11096977) |
|
Immediately | $ 76.32 |
