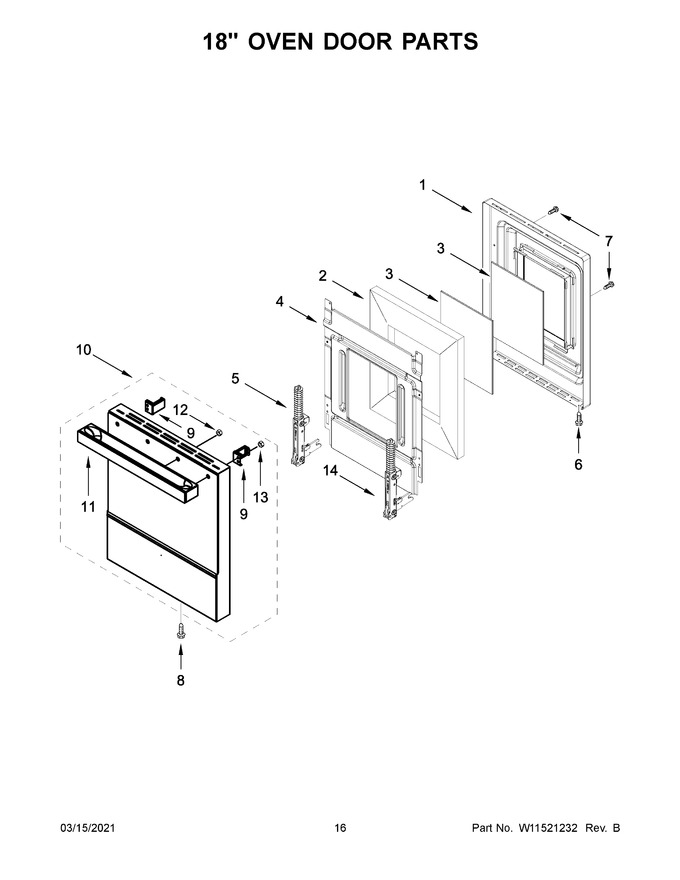

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11318335		Liner, Door   (Replaces: W11036770)				$ 329.85
2	W11317950		Insulation, Door   (Replaces: W10884821)		Appelez-nous	-
3	W11317951		Glass, Inner   (Replaces: W11036789)			Immediately	$ 143.84
4	W11318328		Retainer, Glass   (Replaces: W11194818)				$ 150.30
5	W11318202		Hinge, Door (left)   (Replaces: W11096982)				$ 156.56
6	W11193480		Screw   (Replaces: W10607120)				$ 12.62
7	W11712404		Screw   (Replaces: W10898280)			Immediately	$ 12.66
8	W10162096		Screw				$ 18.77
9	W11317894		Bracket, Handle   (Replaces: W11194816)		Appelez-nous	-
10	W11315558		Assembly, Outer Door Glass (includes Handle)   (Replaces: W10870212)			Immediately	$ 1,278.99
11	W11318200		Handle, Door   (Replaces: W11125539)		Appelez-nous	-
12	W11198435		Nut		Appelez-nous	-
13	999299		Nut		Appelez-nous	-
14	W11318204		Hinge, Door (right)   (Replaces: W11096981)				$ 149.74
