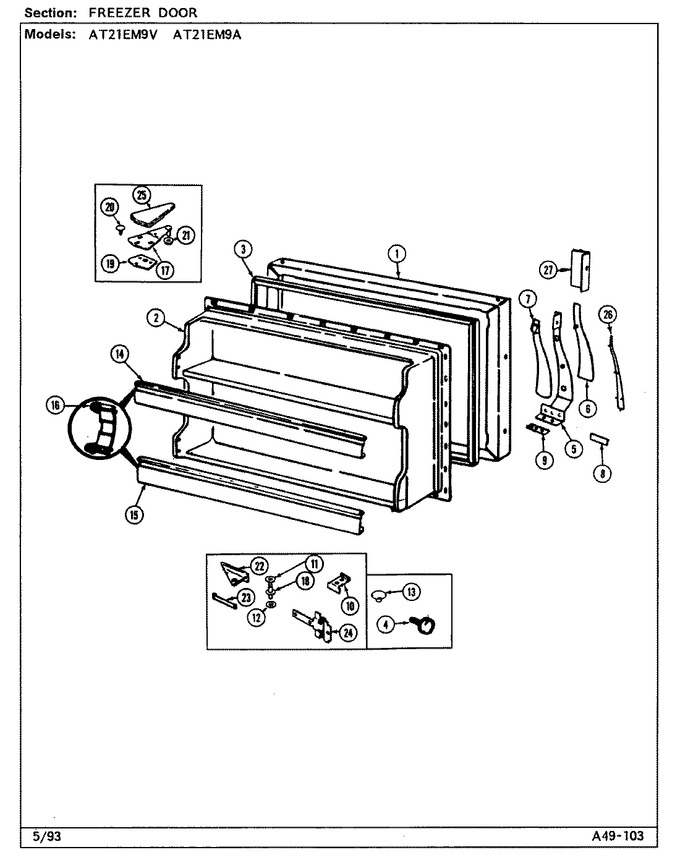

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72345-2-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
2	69470-1		Liner, Frz. Door		Appelez-nous	-
3	70025-5		Gasket, Frz. Door (wht)				$ 142.50
4	69480-4		Plug Button (alm)		Appelez-nous	-
5	65275-57		Screw		Appelez-nous	-
5	69300-3		Handle, Door		Appelez-nous	-
6	68016-5		Handle Insert, Front		Appelez-nous	-
7	60445-4		Insert, Handle (back)		Appelez-nous	-
8	65275-53		Screw		Appelez-nous	-
8	60603-27		Insert, Nameplate		Appelez-nous	-
9	69301-1		Shim, Handle		Appelez-nous	-
10	69256-2		Stop, Door		Appelez-nous	-
10	65275-48		Screw		Appelez-nous	-
11	67483-6		Washer		Appelez-nous	-
12	54233-7		Washer		Appelez-nous	-
13	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
14	WP61003045		Trim, Shelf   (Replaces: 68832-74)				$ 129.55
15	WP61003045		Trim, Door   (Replaces: 68832-72)				$ 129.55
16	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
17	53709-20		Hinge, Upper		Appelez-nous	-
18	69517-1		Pin, Center Hinge		Appelez-nous	-
19	65031-1		Shim, Upper Hinge		Appelez-nous	-
20	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
21	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
21	54233-2		Washer		Appelez-nous	-
22	65275-62		Screw		Appelez-nous	-
22	69514-2		Hinge, Center		Appelez-nous	-
23	69515-1		Shim, Center Hinge		Appelez-nous	-
24	69419-1		Tapping Plate, Center Hinge		Appelez-nous	-
24	65275-61		Screw		Appelez-nous	-
25	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
26	68017-3		Insert, Vinyl Clad		Appelez-nous	-
27	60453-33		Trim, Frz. Door (alm)		Appelez-nous	-
