01 - Chest Of Drawers


02 - Freezer Compartment


03 - Freezer Door


04 - Fresh Food Compartment


05 - Fresh Food Door


06 - Optional Ice Maker


07 - Shelves & Accessories


08 - Unit Compartment & System

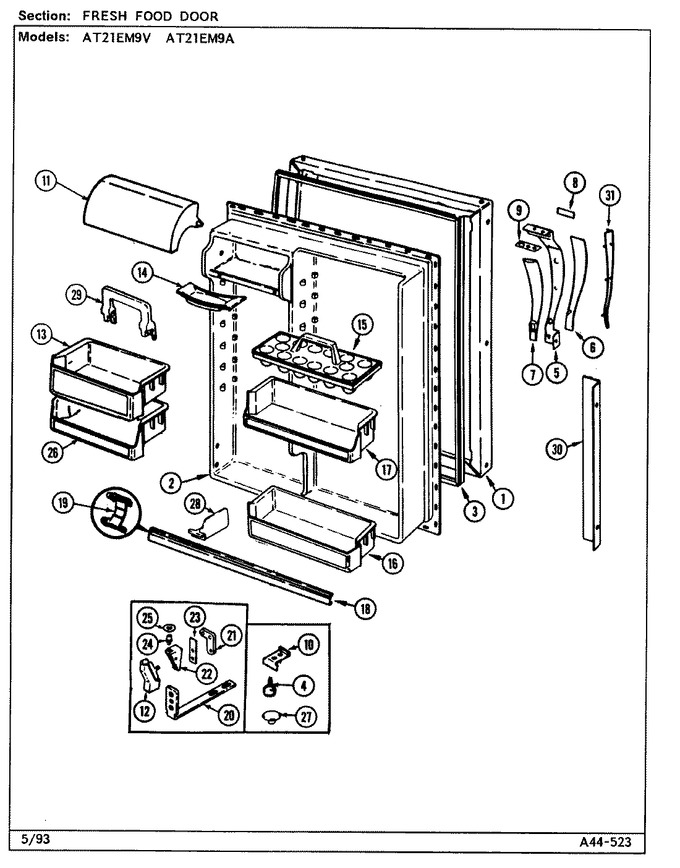

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72349-1-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	69456-1		Liner		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	70025-6		Gasket, F.f. Door (wht)				$ 155.30
4	69480-4		Plug Button (alm)		Appelez-nous	-
5	65275-57		Screw		Appelez-nous	-
5	69300-4		Handle, Door----na		Appelez-nous	-
6	68016-6		Handle Insert, Front		Appelez-nous	-
7	60445-4		Insert, Handle (back)		Appelez-nous	-
8	65275-53		Screw		Appelez-nous	-
8	60603-28		Insert, Nameplate		Appelez-nous	-
9	69301-1		Shim, Handle		Appelez-nous	-
10	69256-2		Stop, Door		Appelez-nous	-
10	65275-48		Screw		Appelez-nous	-
11	66184-365		Door, Dairy		Appelez-nous	-
12	68978-3		Cover, Lower Hinge (alm)		Appelez-nous	-
13	69872-7		Shelf, Pick-off		Appelez-nous	-
14	29936-2		Tray, Butter		Appelez-nous	-
15	60066-1		Tray, Egg		Appelez-nous	-
16	69872-21		Shelf, Pick-off		Appelez-nous	-
17	69872-8		Shelf, Pick-off		Appelez-nous	-
18	WP61003045		Shelf Trim   (Replaces: 68832-21)				$ 129.55
19	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
20	414012-1		Screw		Appelez-nous	-
20	65275-66		Screw (no.10 X 1/2``)		Appelez-nous	-
20	69511-1		Tapping Plate, Lower Hinge		Appelez-nous	-
21	65275-59		Screw		Appelez-nous	-
21	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
22	69516-4		Hinge, Lower (zinc)		Appelez-nous	-
22	65275-51		Screw, Lower Hinge		Appelez-nous	-
23	69510-1		Shim, Lower Hinge		Appelez-nous	-
24	69845-1		Pin, Lower Hinge				$ 44.55
25	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
26	69872-9		Shelf, Pick-off		Appelez-nous	-
27	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
28	64097-11		Organizer, Shelf		Appelez-nous	-
29	69794-1		Retainer, Bottle		Appelez-nous	-
30	60453-32		Trim, F.f. Door (alm)		Appelez-nous	-
31	68017-3		Insert, Vinyl Clad		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
