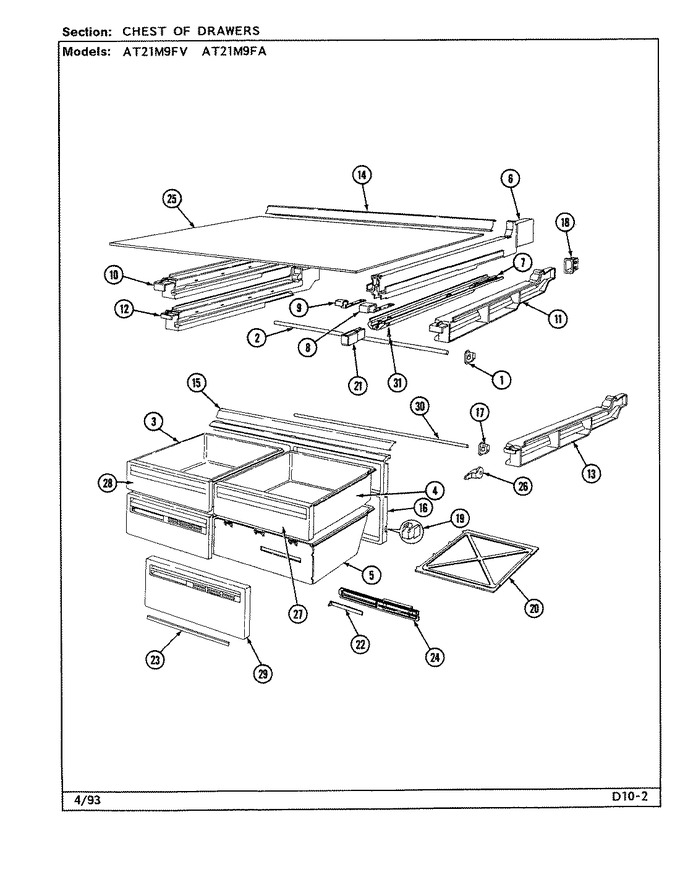

AT21M9FA (BOM: DD64A) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	68757-1	Cup, U-rail Support	Appelez-nous	-
2	68756-1	Crisper Shelf Rod	Appelez-nous	-
3	68513-2	Pan, Meat----na	Appelez-nous	-
4	68513-5	Pan, Meat	Appelez-nous	-
5	68514-2	Pan, Crisper	Appelez-nous	-
6	68515-3	Upper Rail	Appelez-nous	-
7	68268-1	Rail	Appelez-nous	-
8	68269-1	Bracket, Center Rail	Appelez-nous	-
9	68269-2	Bracket, Center Rail	Appelez-nous	-
10	68516-1	Rail, Side (lt-upper)	Appelez-nous	-
11	68516-2	Rail, Side (rt-upper)	Appelez-nous	-
12	68516-5	Rail, Side (lh Lower)	Appelez-nous	-
13	68516-6	Rail, Side (rt-lower)	Appelez-nous	-
14	68271-2	Trim, Rear Shelf	Appelez-nous	-
15	68787-8	Front Shelf Trim	Appelez-nous	-
16	68273-4	Front, Four Drawer	Appelez-nous	-
17	68758-1	Support Rod Cup	Appelez-nous	-
18	68275-2	Cup, Rear Rail Support	Appelez-nous	-
19	68277-1	Clip, Front Bottom	Appelez-nous	-
20	68278-2	Cover, Pan	Appelez-nous	-
21	68280-2	Guide, Center Rail	Appelez-nous	-
22	68582-4	Control, Crisper Slide	Appelez-nous	-
23	68583-10	Handle Insert Trim	Appelez-nous	-
23	68583-12	Handle Insert Trim	Appelez-nous	-
23	68583-8	Trim, Handle Insert	Appelez-nous	-
24	68288-4	Retainer, Slide Control	Appelez-nous	-
25	68292-5	Cover, Glass	Appelez-nous	-
26	68339-1	Stud, Front Clip	Appelez-nous	-
27	68639-16	Front, Meat Pan	Appelez-nous	-
28	68639-16	Front, Meat Pan	Appelez-nous	-
29	68640-10	Front, Crisper	Appelez-nous	-
29	68398-1	Screw, Anchor	Appelez-nous	-
29	68391-1	Cover, Air Inlet	Appelez-nous	-
30	68756-2	U-rail, Crisper Shelf Support	Appelez-nous	-
30	W11233072	Screw (Replaces: 400016-1)		Immediately	$ 12.62
31	68393-1	Pin, Frame Guide	Appelez-nous	-
31	405003-1	Screw	Appelez-nous	-
31	68394-1	Cup, Frame Mount	Appelez-nous	-
