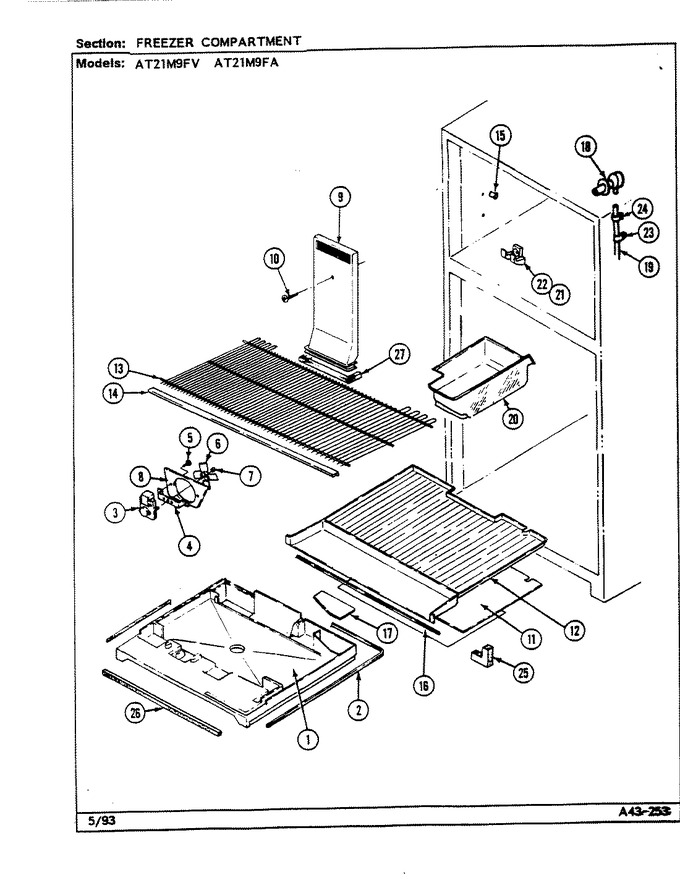

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	69404-1		Tray, Styrofoam Mullion		Appelez-nous	-
2	69414-3		Seal, Mullion Tray		Appelez-nous	-
3	69106-2		Motor, Evaporator Fan				$ 95.45
3	406062-1		Screw		Appelez-nous	-
4	64856-1		Bracket, Fan Motor		Appelez-nous	-
5	400015-12		Screw		Appelez-nous	-
6	69107-1		Blade, Evaporator Fan		Appelez-nous	-
7	420092-900		Washer, Spring		Appelez-nous	-
8	69811-2		Orifice Assy., Damper		Appelez-nous	-
9	69578-1		Tunnel, Air		Appelez-nous	-
10	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62
11	66403-2		Cover, Evaporator		Appelez-nous	-
12	69398-1		Bottom, Frz.		Appelez-nous	-
13	60438-27		Shelf		Appelez-nous	-
14	60414-38		Trim,freezer Shelf		Appelez-nous	-
15	60313-1		Cup, Shelf		Appelez-nous	-
16	69413-2		Magnet		Appelez-nous	-
17	66480-5		Cover, Plenum		Appelez-nous	-
18	68307-1		Grommet, Water Entry		Appelez-nous	-
19	WPB5705307		Tubing, Valve To Grommet   (Replaces: 67579-7)				$ 11.19
20	68327-1		Pan, Ice		Appelez-nous	-
21	400019-1		Screw		Appelez-nous	-
22	66101-1		Stud, Shelf		Appelez-nous	-
23	WP489069		Screw   (Replaces: 65275-50)			Immediately	$ 7.07
23	W10833902		Clamp, Tubing   (Replaces: 53516-8)				$ 9.89
24	WPM0114003		Clamp, Spring   (Replaces: 60333-4)				$ 9.95
25	68946-2		Seal		Appelez-nous	-
26	69562-2		Seal, Mullion Tray (front)		Appelez-nous	-
27	66325-34		Seal, Air Tunnel----na		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
