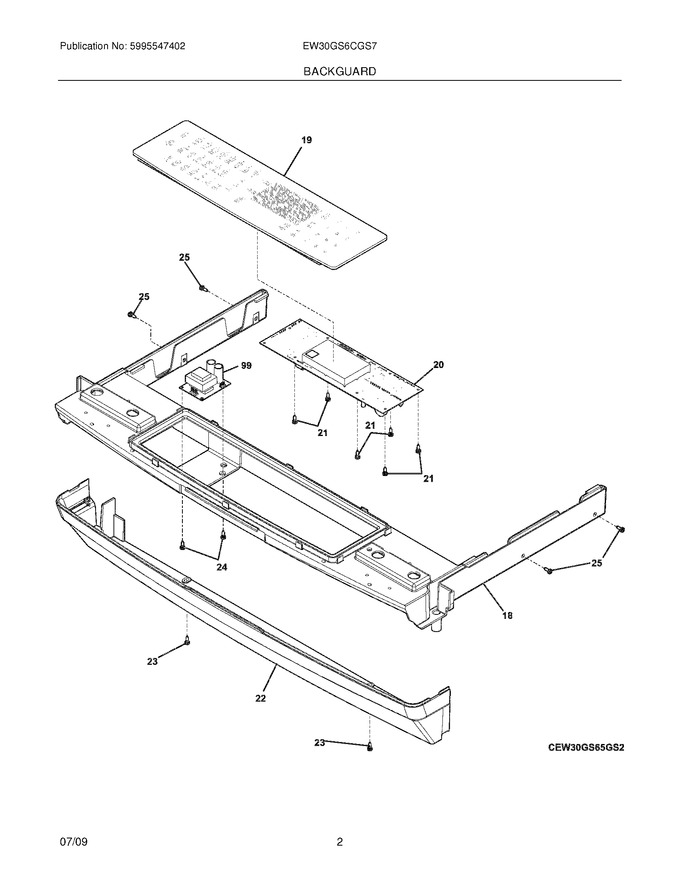

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	7318900300		Subframe,control		Appelez-nous	-
21	7316524400		Screw,control Mtg ,6-32 X .25 ,(5)		Appelez-nous	-
22	318905005		Panel,service ,stainless   (Replaces: 7318905005)				$ 450.32
23	75304417153		Screw,shoulder ,8-18 X 1/2 ,(4)		Appelez-nous	-
24	75303307980		Screw,8-32 X 0.437 ,(8)		Appelez-nous	-
25	75303131801		Screw,10 X 3/8		Appelez-nous	-
F19	7318387133		Control Assembly,glass ,black ,w/interface		Appelez-nous	-
F20	7316528323		Controller,electronic ,es631		Appelez-nous	-
F99	316535200		Board,power Supply ,8v ,(2)   (Replaces: 7316535200)				$ 408.36
FNI	7318402345		Harness,wiring ,control Panel		Appelez-nous	-
FNI	7318384451		Harness,wiring ,power To Timer		Appelez-nous	-
NI	7318163602		Cleaner,stainless Steel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
