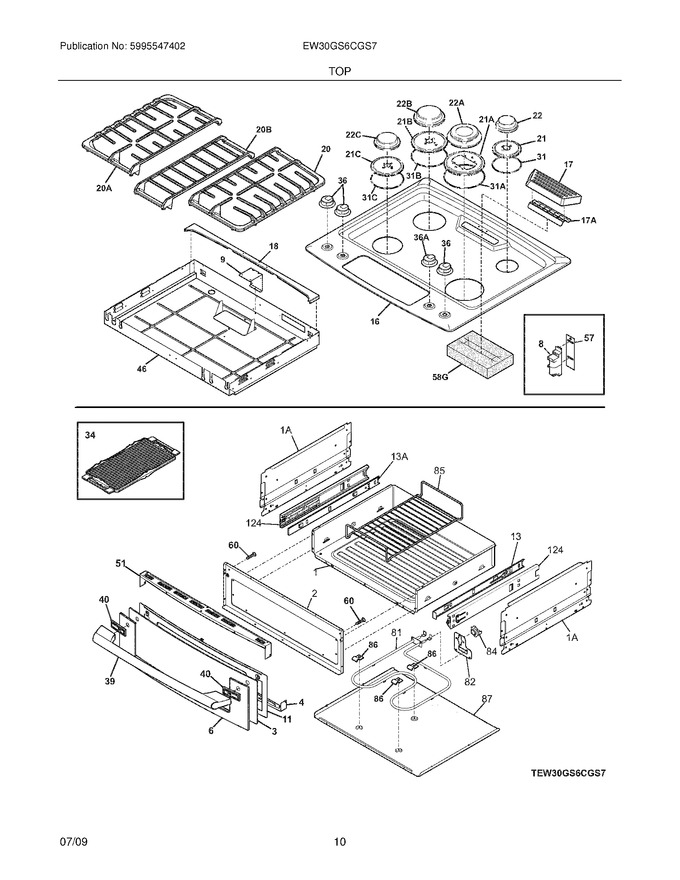

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7318304402		Drawer,body Assembly		Appelez-nous	-
2	7318391205		Panel,drawer ,inner		Appelez-nous	-
3	7318904405		Glass,drawer ,black ,outer		Appelez-nous	-
4	7318904903		Trim,door ,black ,lower		Appelez-nous	-
6	7318377911		Trim,front ,stainless		Appelez-nous	-
9	7318905500		Support,maintop		Appelez-nous	-
11	7318385701		Frame,drawer ,outer		Appelez-nous	-
13	7318259507		Glide,warmer ,inner Rh		Appelez-nous	-
16	7318536526		Maintop Assembly,stainless ,w/support ,w/graphics		Appelez-nous	-
17	7318905403		Cover,flue ,black		Appelez-nous	-
18	7318906900		Support,deflector Box		Appelez-nous	-
20	318909206		Grate,burner ,black ,rh   (Replaces: 7318909206)				$ 310.17
21	7316514800		Skirt,5k Burner ,black		Appelez-nous	-
22	7316510902		Cap,5k Burner ,black		Appelez-nous	-
31	7316515200		Seal,5k Burner		Appelez-nous	-
34	7316534001		Griddle		Appelez-nous	-
36	7318905202		Knob,burner ,stainless ,(3)		Appelez-nous	-
39	7241881302		Handle,door ,stainless		Appelez-nous	-
40	7318902902		Spacer,handle ,grey ,(2)		Appelez-nous	-
46	7318900111		Box,deflector		Appelez-nous	-
51	7318904701		Trim,door ,black ,upper		Appelez-nous	-
57	7318295611		Panel,service		Appelez-nous	-
60	75304472956		Screw,hex Wash ,6-32 X .485		Appelez-nous	-
82	7318304500		Bracket,element ,warmer Drawer		Appelez-nous	-
85	7318345601		Rack,warmer Drawer		Appelez-nous	-
86	7316095800		Clip,hold Down ,warmer Element		Appelez-nous	-
87	7318300102		Panel,warmer Drawer ,lower		Appelez-nous	-
124	316105501		Glide,outer/rh & Lh ,(2)   (Replaces: 7316105501)				$ 90.72
13A	7318259506		Glide,warmer ,inner Lh		Appelez-nous	-
17A	7318907401		Cover,flue		Appelez-nous	-
1A	7318300003		Panel,warmer Drawer ,side ,(2)		Appelez-nous	-
20A	7318909207		Grate,burner ,black ,lh		Appelez-nous	-
20B	318909403		Grate,burner ,black ,center   (Replaces: 7318909403)				$ 257.24
21A	7316515100		Skirt,18k Burner ,black ,(2)		Appelez-nous	-
21B	7316515000		Skirt,14k Burner ,black		Appelez-nous	-
21C	7316514900		Skirt,9.5k Burner ,black		Appelez-nous	-
22A	7316511502		Cap,18k Burner ,black ,(2)		Appelez-nous	-
22B	7316511302		Cap,14k Burner ,black ,(2)		Appelez-nous	-
22C	7316511102		Cap,9.5k Burner ,black		Appelez-nous	-
31A	316515203		Seal,18k Burner ,(2)   (Replaces: 7316515203)				$ 70.31
31B	7316515202		Seal,14k Burner		Appelez-nous	-
31C	7316515201		Seal,9.5k Burner		Appelez-nous	-
36A	318905205		Knob,burner ,stainless ,dual   (Replaces: 7318905205)				$ 127.40
58G	7318285099		Insulation,flue		Appelez-nous	-
F8	5304505695		Module,spark   (Replaces: 7316135702)			Immediately	$ 68.16
F81	7318255301		Element,warmer Drawer		Appelez-nous	-
F84	7318005108		Thermostat		Appelez-nous	-
NI	75303307980		Screw,8-32 X 0.437 ,(8)		Appelez-nous	-
NI	75304416408		Screw,10-24 X 1.750 ,handle Mtg		Appelez-nous	-
NI	73201909		Washer,flat ,(2)		Appelez-nous	-
NI	75303311333		Screw,8-32 X 3/8		Appelez-nous	-
NI	75304463974		Screw,thermostat ,6-20 X 5/8 ,(2)		Appelez-nous	-
NI	7318199748		Wiring Harness,drawer		Appelez-nous	-
NI	75304400192		Retainer,wiring		Appelez-nous	-
NI	708008009		Bushing,nylon ,snap		Appelez-nous	-
NI	75304463977		Bumper,base ,(2)		Appelez-nous	-
NI	7318531701		Spacer,(2)		Appelez-nous	-
NI	7318163602		Cleaner,stainless Steel		Appelez-nous	-
NI	75303211311		Screw,8 X 0.500		Appelez-nous	-
NI	75303300265		Screw,8-18 X 1/2 ,silver ,(4)		Appelez-nous	-
NI	318534403		Gasket,maintop   (Replaces: 7318534403)			Immediately	$ 59.16
