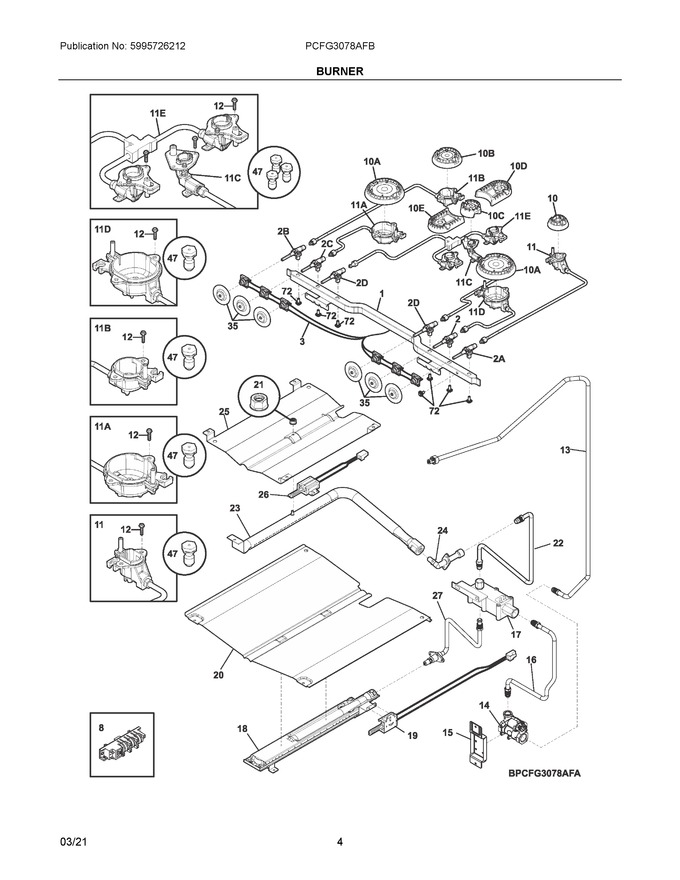

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304523861		Manifold, Pipe			Immediately	$ 144.85
2	5304507282		Valve, Top Burner, White Stem, 1500btu   (Replaces: 5304506550)			Immediately	$ 53.85
3	5304523871		Harness-ignition				$ 97.07
8	808608807		Spark Module, Ignitor			Immediately	$ 56.12
10	5304521014		Burner, Crown, Small, Aft			Immediately	$ 21.69
11	5304523877		Ignitor/orifice Assembly, 5k, Right Rear			Immediately	$ 74.32
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
13	5304523885		Tube, Manifold Supply				$ 101.63
14	316091711		Regulator, Pressure   (Replaces: 5304498819)			Immediately	$ 90.03
15	316603300		Bracket, Regulator				$ 22.75
16	5304507349		Tube, Safety Valve				$ 34.13
17	5303210798		Valve, Safety			Immediately	$ 587.56
18	5304494426		Burner, Oven				$ 94.98
19	316489403		Ignitor, Bake   (Replaces: 5304508786)			Immediately	$ 113.15
20	316602002		Baffle, Oven Burner				$ 65.98
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	5304516857		Tube, Broil Burner		Appelez-nous	-
23	316404302		Burner, Broiler				$ 104.18
24	5304516894		Elbow, Mixer				$ 87.21
25	5304497666		Baffle, Broiler				$ 94.04
26	5304506545		Ignitor, Broiler			Immediately	$ 94.21
27	316602400		Tube, Valve To Bake, W/mixer				$ 160.18
35	5304508440		Bushing, Insulating			Immediately	$ 11.38
47	808695310		Lp Conversion Kit, Tb8			Immediately	$ 96.87
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
10A	5304521016		Burner, Crown, Large, Aft			Immediately	$ 34.94
10B	5304521015		Burner, Crown, Medium, Aft			Immediately	$ 40.71
10C	5304523854		Burner, Oval, Center				$ 27.30
10D	5304523856		Burner Simmer, Oval, Center Rear, 6k			Immediately	$ 68.26
10E	5304523855		Burner Simmer, Oval, Center Front, 6k				$ 69.01
11A	5304523873		Ignitor/orifice Assembly, 14k, Left Front, Assembly			Immediately	$ 79.62
11B	5304523872		Ignitor/orifice Assembly, 9.5k, Left Rear, Assembly			Immediately	$ 94.04
11C	5304523875		Ignitor/orifice Assembly, 3k, Center, Assembly			Immediately	$ 89.50
11D	5304523876		Ignitor/orifice Assembly, 18k, Right Front, Assembly			Immediately	$ 100.86
11E	5304523874		Ignitor/orifice Assembly, 6k, Center F/r			Immediately	$ 144.09
2A	5304506547		Valve, Top Burner, Black Stem, 500btu				$ 69.01
2B	5304506549		Valve, Top Burner, Blue Stem, 1125btu			Immediately	$ 62.34
2C	5304506548		Valve, Top Burner, Green Stem, 850btu			Immediately	$ 82.66
2D	5304507283		Valve, Top Burner, Clear Stem, 2000btu				$ 53.85
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 7.79
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304505563		Wire, Ground, Spark Module, W/connector			Immediately	$ 16.23
NI	316602300		Bracket, Mixer, Bake				$ 12.05
NI	316089500		Screw, 10-16 X .486				$ 13.46
NIA	316498100		Shield, Wire, Safety Valve				$ 15.17
NIA	316401500		Cover, Broil Ignitor				$ 12.89
NIA	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
