01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body

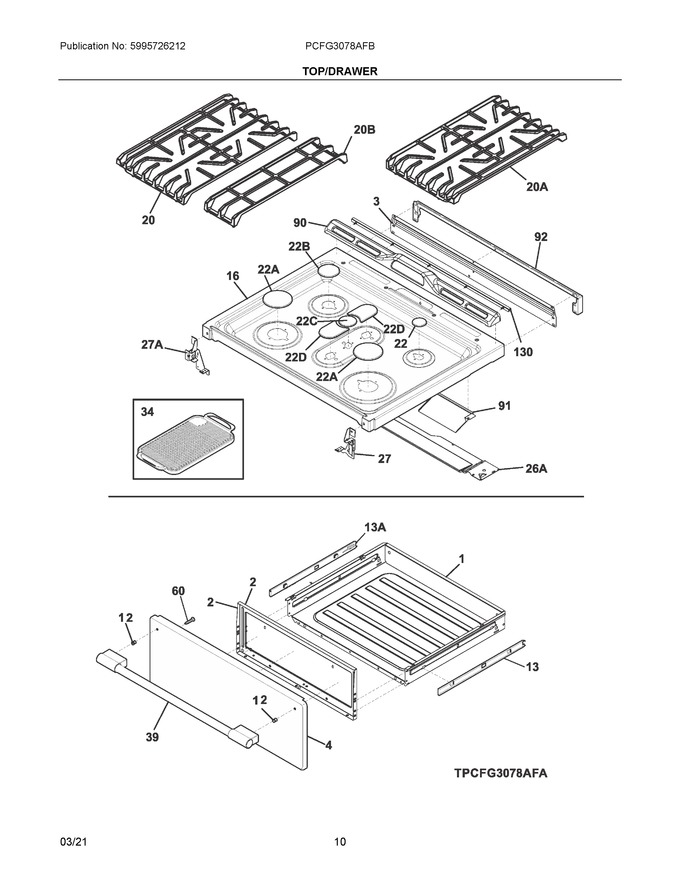

05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 807108405 | Drawer, Warmer |
|
$ 125.44 | |||||
| 2 | 5304527988 | Liner, Warmer (Replaces: 5304518924) |
|
Immediately | $ 26.54 | ||||
| 3 | 5304514133 | Shield, Rear Wall, Upper |
|
$ 34.89 | |||||
| 4 | 5304494412 | Panel, Drawer Front, Stainless |
|
$ 98.53 | |||||
| 12 | 5304494420 | Nut, Hour Glass, Handle Mtg. |
|
$ 12.76 | |||||
| 13 | 316415000 | Glide, Warmer, Inner Rh |
|
$ 58.82 | |||||
| 16 | 5304523895 | Maintop, Stainless |
|
$ 317.00 | |||||
| 20 | 5304526186 | Grate, Left |
|
$ 293.54 | |||||
| 22 | 5304520370 | Cap, Burner, Small, Black |
|
Immediately | $ 15.62 | ||||
| 27 | 5304514123 | Bracket, Mounting, Rh, Cooktop |
|
$ 13.65 | |||||
| 34 | 5304495353 | Griddle |
|
Immediately | $ 166.84 | ||||
| 39 | 5304494423 | Handle, Asm |
|
Immediately | $ 314.69 | ||||
| 60 | 5303288572 | Screw-handle Mtg |
|
- | |||||
| 90 | 5304523888 | Trim, Rear Vent, Stainless |
|
$ 85.04 | |||||
| 91 | 5304514181 | Deflector, Moisture, (2) |
|
$ 10.63 | |||||
| 92 | 5304520261 | Rear Filler Kit, Fcfs Range, Black |
|
Immediately | $ 163.81 | ||||
| 130 | 808931802 | Seal, Maintop, Silicone, Rear |
|
$ 40.19 | |||||
| 13A | 316415001 | Glide, Warmer, Inner Lh |
|
Immediately | $ 58.82 | ||||
| 20A | 5304526187 | Grate, Center |
|
$ 190.35 | |||||
| 20B | 5304526188 | Grate, Right |
|
$ 190.35 | |||||
| 22A | 5304520372 | Cap, Burner, Large, Black |
|
Immediately | $ 22.75 | ||||
| 22B | 5304520371 | Cap, Burner, Medium, Black |
|
Immediately | $ 19.72 | ||||
| 22C | 5304524590 | Cap-burner, 5a, Black, Matte, 3mm |
|
$ 18.95 | |||||
| 22D | 808851601 | Cap, Simmer Burner, Outer, (2) |
|
$ 89.31 | |||||
| 26A | 5304514126 | Bracket, Support, Rear, Chassis |
|
- | |||||
| 27A | 5304514124 | Bracket, Mounting, Lh, Cooktop |
|
$ 13.65 | |||||
| NI | 316260800 | Screw-shoulder, W/shoulder, #8-18 X 1/2 |
|
$ 13.46 | |||||
| NI | 5304414648 | Screw, Handle Set |
|
$ 14.18 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black, 44* |
|
$ 13.46 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 |
