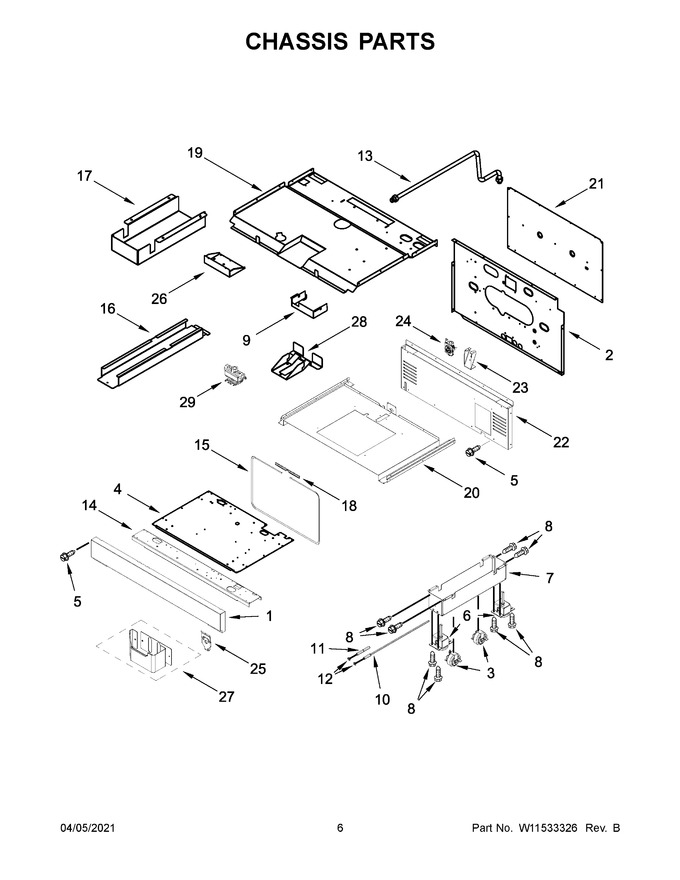

04 - Chassis Parts


05 - Oven Parts


06 - Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11386103		Kickplate   (Replaces: W11394776)		Appelez-nous	-
2	W11324989		Back, Chassis		Appelez-nous	-
3	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 38.86
4	W11109583		Duct, Bottom (30")		Appelez-nous	-
5	7101P42660		Screw		Appelez-nous	-
6	W10859931		Leveler   (Replaces: 9760860)				$ 101.59
7	W10908710		Base, Leveling Leg				$ 122.45
8	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
9	W11369237		Cabinet, Appliance Manager				$ 76.61
10	W10115869		Shaft, Long			Immediately	$ 93.74
11	W10115793		Shaft, Short				$ 65.00
12	489504		E-ring				$ 6.35
13	W11364214		Tube, Pressure Regulator   (Replaces: W11181648)				$ 96.53
14	W11087491		Support, Channel		Appelez-nous	-
15	W11675844		Gasket, Oven (30")   (Replaces: W11115328)			Immediately	$ 62.78
16	W11050145		Duct-chassis, Rear		Appelez-nous	-
17	W11368831		Channel, Wire		Appelez-nous	-
18	W11362015		Retainer, Gasket (9" Long)				$ 135.59
19	W11324986		Top, Chassis		Appelez-nous	-
20	W11040802		Chassis, Bottom		Appelez-nous	-
21	W11103334		Panel, Back Top		Appelez-nous	-
22	W11034134		Panel, Back Bottom		Appelez-nous	-
23	W11320155		Bracket, Pressure Regulator   (Replaces: W11096823)		Appelez-nous	-
24	W11193822		Regulator, Pressure   (Replaces: W10896959)				$ 255.06
25	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 11.04
26	W11320147		Drawer, Appliance Manager   (Replaces: W11106341)		Appelez-nous	-
27	W11199181		Cover, Foot (left)			Immediately	$ 74.09
28	W11190223		Bracket, Bake Alignment				$ 70.97
29	W11239228		Valve, Dual   (Replaces: W10145680)			Immediately	$ 288.82
27A	W11199178		Cover, Foot (right)				$ 74.54
