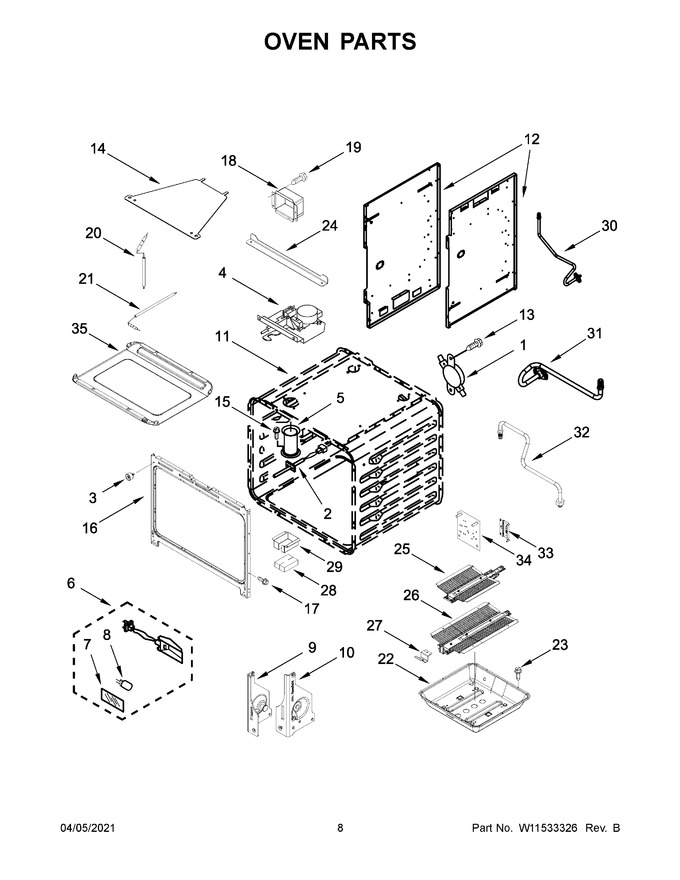

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4450249 | Thermostat (tod) (Replaces: 4450249) |
|
Immediately | $ 181.29 | ||||
| 2 | W10859573 | Probe, Sensor (Replaces: W10622170) |
|
Immediately | $ 120.45 | ||||
| 3 | WPW10351278 | Bumper & Screw (Replaces: W10351278) |
|
$ 9.44 | |||||
| 4 | W11029221 | Latch, Motorized (Replaces: W10830016) |
|
Immediately | $ 280.85 | ||||
| 5 | W10145743 | Tube, Vent |
|
- | |||||
| 6 | W11233684 | Assembly, Oven Light (Replaces: W11223932) |
|
$ 95.43 | |||||
| 7 | W10169756 | Lens, Light |
|
$ 36.16 | |||||
| 8 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 42.64 | ||||
| 9 | W11096294 | Receiver, Hinge (left) |
|
- | |||||
| 10 | W11096293 | Receiver, Hinge (right) |
|
- | |||||
| 11 | NP | Gearcase Motor Housing (refer To Color Variation Parts Page) |
|
- | |||||
| 12 | W11320145 | Chassis, Side (left) (Replaces: W11102297) |
|
$ 206.69 | |||||
| 13 | 7101P42660 | Screw |
|
- | |||||
| 14 | W10160858 | Cover, Latch |
|
$ 65.95 | |||||
| 15 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 16 | W11643166 | Frame, Front (Replaces: W11192755) |
|
$ 305.88 | |||||
| 17 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 18 | W10308051 | Box, Broil |
|
- | |||||
| 19 | 7101P43460 | Screw |
|
- | |||||
| 20 | W11355920 | Electrode, Broil (Replaces: W11182863) |
|
$ 61.25 | |||||
| 21 | W11355922 | Electrode, Bake (Replaces: W11205400) |
|
Immediately | $ 60.17 | ||||
| 22 | WPW10145744 | Support, Bake Pan (Replaces: W10145744) |
|
$ 183.56 | |||||
| 23 | WP12992902 | Screw (Replaces: 12992902) |
|
$ 9.96 | |||||
| 24 | W10317437 | Bracket, Broil Standoff |
|
- | |||||
| 25 | W11643161 | Burner, Bake (Replaces: W10878504) |
|
Immediately | $ 157.97 | ||||
| 26 | W11661180 | Burner, Broil (Replaces: W10311335) |
|
$ 148.96 | |||||
| 27 | W10308040 | Bracket, Bake Burner |
|
- | |||||
| 28 | W11688851 | Insulation, Broil Cover (Replaces: W10311009) |
|
- | |||||
| 29 | W10310985 | Cover, Broil |
|
- | |||||
| 30 | W11355244 | Tube, Broil (Replaces: W11109238) |
|
$ 159.08 | |||||
| 31 | W11355919 | Tube, Bake (Replaces: W11106980) |
|
Immediately | $ 153.47 | ||||
| 32 | W11392923 | Tube, Gas (Replaces: W11109167) |
|
$ 157.70 | |||||
| 33 | W10145362 | Bracket-board, Dsi |
|
$ 69.71 | |||||
| 34 | WPW10511278 | Module, Spark Dsi (Replaces: W10511278) |
|
Immediately | $ 215.63 | ||||
| 35 | W11661576 | Pan, Oven Bottom (Replaces: W10496809) |
|
Immediately | $ 144.85 | ||||
| 12A | W11320144 | Chassis, Side (right) (Replaces: W11102296) |
|
$ 199.72 | |||||
| NI | NP | Gearcase Motor Housing (refer To Color Variation Parts Page) |
|
- | |||||
| NI | W11661177 | Insulation, Wrap, 30 (Replaces: W10282810) |
|
$ 139.28 | |||||
| NI | WP3400968 | Nut (Replaces: 3400968) |
|
Immediately | $ 7.01 | ||||
| NI | W11688549 | Insulation, Back, 30 (Replaces: W11109145) |
|
- | |||||
| NI | W11684890 | Insulation, Bottom (Replaces: W10299354) |
|
- |
