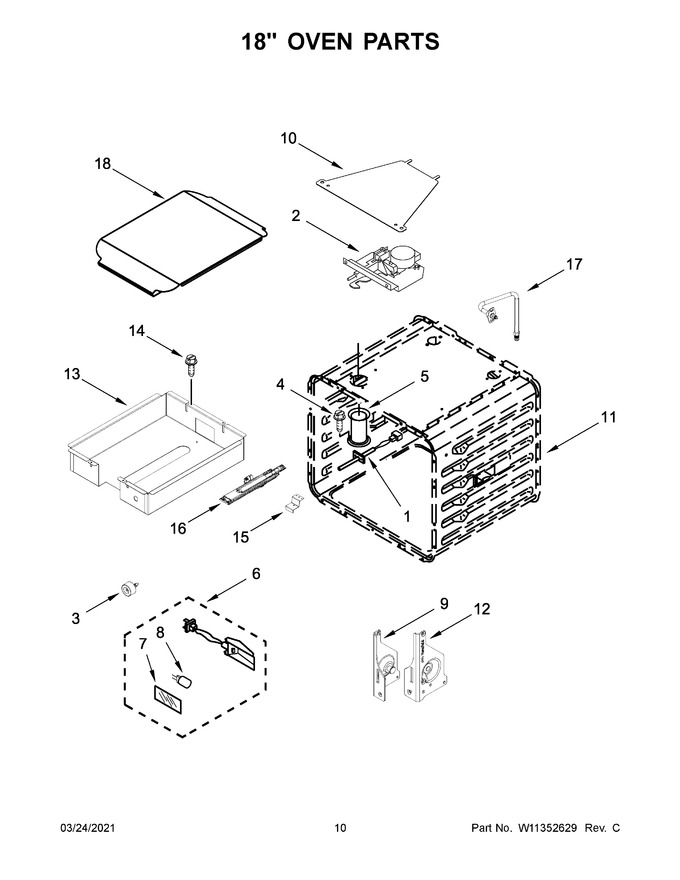

06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 120.45
2	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 280.85
3	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 9.44
4	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
5	W10145743		Tube, Vent		Appelez-nous	-
6	W11233684		Assembly, Oven Light   (Replaces: W11223932)				$ 95.43
7	W10169756		Lens, Light				$ 36.16
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 42.64
9	W11096294		Receiver, Hinge (left)		Appelez-nous	-
10	W10160858		Cover, Latch				$ 65.95
11	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
12	W11096293		Receiver, Hinge (right)		Appelez-nous	-
13	W10145651		Support, Bake Pan		Appelez-nous	-
14	WP12992902		Screw   (Replaces: 12992902)				$ 9.96
15	W10308041		Bracket, Bake Burner 18" Cavity		Appelez-nous	-
16	W10878505		Burner, Bake W/o Spreader			Immediately	$ 189.49
17	W10145706		Tube, Bake				$ 173.88
18	W11504377		Cover, Bake   (Replaces: W11211936)				$ 182.39
NI	W11688744		Insulation, Wrap, 18   (Replaces: W10282820)		Appelez-nous	-
NI	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 7.01
NI	W11688581		Insulation, Bottom   (Replaces: W10299355)		Appelez-nous	-
NI	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
NI	W11688776		Insulation, Back, 18   (Replaces: W10299353)		Appelez-nous	-
