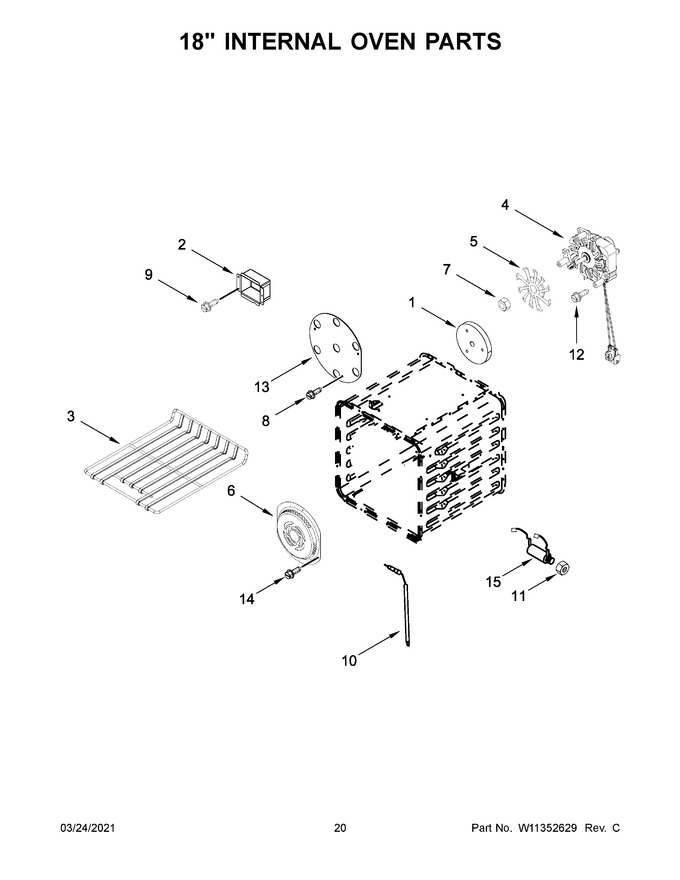

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11688507		Insulation, Convection Cover   (Replaces: W10282821)			Immediately	$ 23.23
2	W10308051		Box, Broil		Appelez-nous	-
3	W11111351		Rack, Oven (18")				$ 134.70
4	W10794440		Motor, Convection   (Replaces: W10631506)			Immediately	$ 284.83
5	W11320150		Blade, Fan   (Replaces: W11108376)				$ 293.69
6	W11368180		Cover, Fan		Appelez-nous	-
7	W10794042		Nut, Acorn (lh)   (Replaces: W10631504)				$ 11.26
8	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
9	7101P43460		Screw		Appelez-nous	-
10	W11355922		Electrode, Bake   (Replaces: W11205400)			Immediately	$ 60.17
11	W11231343		Nut, Locking   (Replaces: W11033111)				$ 11.55
12	W10850807		Screw   (Replaces: W10720084)				$ 6.67
13	W10261523		Plate, Fan				$ 66.73
14	W10739592		Screw		Appelez-nous	-
15	8186589		Jack, Meat Probe   (Replaces: 9755543)			Immediately	$ 97.22

    View Diagram in Separate Window       Print Part List
