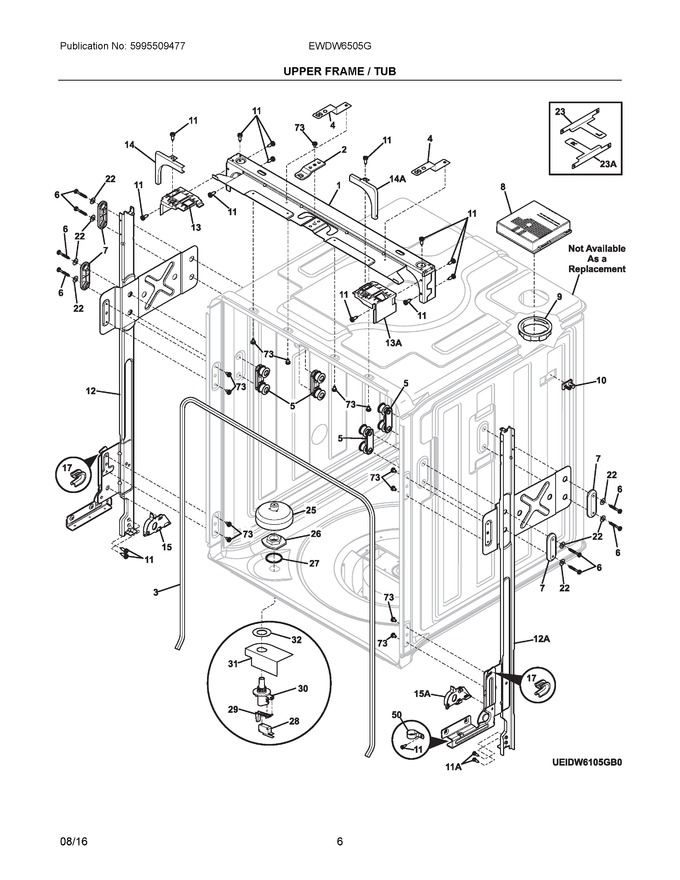

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7154500701		Brace, Frame, Top		Appelez-nous	-
2	7154511401		Strike, Door Latch		Appelez-nous	-
3	7154513401		Gasket, Tub		Appelez-nous	-
4	7154657901		Clip, Cabinet Mtg., Top Mount, (2)		Appelez-nous	-
5	7154510702		Roller Assembly, Tub, (4), W/gasket		Appelez-nous	-
6	7154572801		Screw, Tub Roller, (8)		Appelez-nous	-
7	7154510601		Plate, Retainer, Outer, (2), Tub Roller		Appelez-nous	-
8	7154688501		Vent Assembly, Upper		Appelez-nous	-
9	7154622601		Bezel, Vent Assy, Upper		Appelez-nous	-
10	7154633501		Clip, Wiring Harness		Appelez-nous	-
11	7154518301		Screw, 6 Lobe Recess, #8-18		Appelez-nous	-
12	7154612901		Leg And Hinge Assembly, Left Hand, Front		Appelez-nous	-
13	7154654401		Bracket, Cabinet Clip, Lh		Appelez-nous	-
14	7154502901		Trim, Corner, Lh		Appelez-nous	-
15	7154656801		Cover, Hinge Arm, Lh		Appelez-nous	-
17	7154671501		Bushing, Hinge Arm Cable, (2)		Appelez-nous	-
22	75300809968		Washer		Appelez-nous	-
23	154654601		Clip, Cabinet Mtg., Lh   (Replaces: 7154654601)				$ 51.03
25	7154506702		Float, Tub Flood		Appelez-nous	-
26	154506902		Nut, Float Switch   (Replaces: 7154506902)				$ 15.18
27	154677201		Gasket, Float Switch   (Replaces: 7154677201)				$ 8.94
28	154860901		Switch, Float   (Replaces: 7154507001)				$ 103.38
29	154763901		Actuator, Float Switch   (Replaces: 7154517001)				$ 49.16
30	154763901		Bracket, Float Switch   (Replaces: 7154506601)				$ 49.16
31	7154657101		Shield, Float Bracket		Appelez-nous	-
32	7154506801		Washer, Float Switch		Appelez-nous	-
50	7154690101		Clamp, Wiring		Appelez-nous	-
73	7154518401		Screw, 6 Lobe Recess, #8-32		Appelez-nous	-
11A	7154200701		Screw, #10-32 X 3/8		Appelez-nous	-
12A	7154613001		Leg And Hinge Assembly, Right Hand, Front		Appelez-nous	-
13A	7154654501		Bracket, Cabinet Clip, Rh		Appelez-nous	-
14A	7154502001		Trim, Corner, Rh		Appelez-nous	-
15A	7154656901		Cover, Hinge Arm, Rh		Appelez-nous	-
23A	7154654701		Clip, Cabinet Mtg., Rh		Appelez-nous	-
NI	7154627701		Harness, Wiring, Float Switch		Appelez-nous	-
NI	7154662101		Cabinet Seal Kit		Appelez-nous	-
NI	7154623602		Insulation, Blanket		Appelez-nous	-
NI	7154679701		Clip, Insulation, (2)		Appelez-nous	-
NIA	7154657201		Screw, Cabinet Clip, (2)		Appelez-nous	-
NIA	7154691601		Cover, Connector, Vent Assy		Appelez-nous	-
