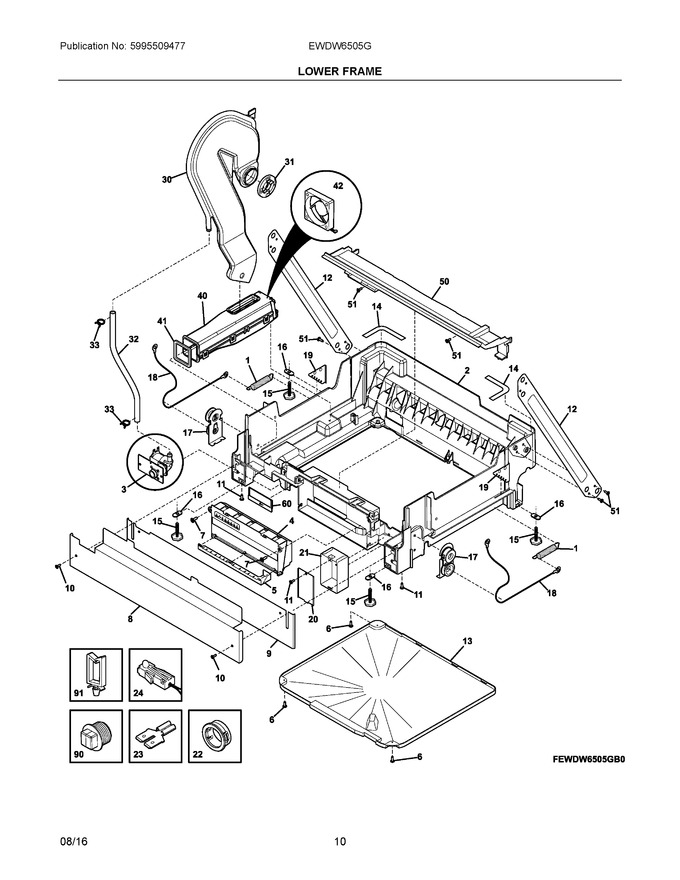

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7154514801		Spring, Door Hinge, (2)		Appelez-nous	-
2	7154502601		Base, Frame Mounting		Appelez-nous	-
3	7154513601		Valve Assembly, Water		Appelez-nous	-
4	154750502		Control Assembly   (Replaces: 7154515001)			Immediately	$ 341.22
5	7154624701		Bracket, Control Housing		Appelez-nous	-
6	7154294701		Screw, #7 Plas .375, (6), Disp. Assy.		Appelez-nous	-
7	7154673501		Screw, 6 Lobe Recess, #10 Hi Lo		Appelez-nous	-
8	7154658003		Kickplate, Black, W/label		Appelez-nous	-
9	7154679303		Toe Plate, Adjustable, Black, W/damper		Appelez-nous	-
10	7154371304		Screw, Phillips Head, Black		Appelez-nous	-
11	7154518301		Screw, 6 Lobe Recess, #8-18		Appelez-nous	-
12	7154501301		Frame, Diagonal, Leg, (2)		Appelez-nous	-
13	7154658101		Tray, Base, W/label		Appelez-nous	-
14	7154610301		Tape, Connection, (2), Base To Tub		Appelez-nous	-
15	5304506540		Leg, Leveling, (4)   (Replaces: 7154571101)			Immediately	$ 10.85
16	7154515401		Plate, Mounting, (4), Leveling Leg		Appelez-nous	-
17	7154516501		Bracket Assembly, Pulley, (2)		Appelez-nous	-
18	154658601		Cable, Hinge Pulley, (2)   (Replaces: 7154658601)				$ 82.22
19	7154514901		Plate, Adjustment, (2), Door Spring		Appelez-nous	-
20	7154658201		Cover, Junction Box, W/label		Appelez-nous	-
21	7154517501		Box, Junction		Appelez-nous	-
22	7154610701		Grommet, Electrical		Appelez-nous	-
23	7154671801		Connector, Ground, 1 Female, To 2 Male		Appelez-nous	-
24	7154657501		Light Assembly, Cleaning		Appelez-nous	-
30	7154617901		Duct Assembly, Side Drying, W/gasket		Appelez-nous	-
31	7154618301		Cover, Drying Inlet		Appelez-nous	-
32	154625001		Tubing, Water Inlet   (Replaces: 7154625001)				$ 17.01
33	75303318539		Clamp, Tubing, (2)		Appelez-nous	-
40	7154617601		Duct Assembly, Lower Drying, W/motor		Appelez-nous	-
41	7154617801		Gasket, Drying Duct, Lower		Appelez-nous	-
42	7154619101		Motor, Drying		Appelez-nous	-
50	7154670401		Adaptor Plate, Assembly, W/foam		Appelez-nous	-
51	154518001		Screw, Pan Head, #10-16 X .8   (Replaces: 7154518001)				$ 10.54
60	7154622701		Cover, Valve Service		Appelez-nous	-
90	7154679801		Plug, Water Valve		Appelez-nous	-
91	7154690001		Clip, Wiring		Appelez-nous	-
NI	7154654001		Harness, Wiring, Base, Lh Side		Appelez-nous	-
NI	7154688401		Harness, Wiring, Rh Side, Base		Appelez-nous	-
NI	7154672301		Screw, 6 Tri Lobe, #10 Ph, (2)		Appelez-nous	-
NIA	7154689201		Deflector, Valve		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
