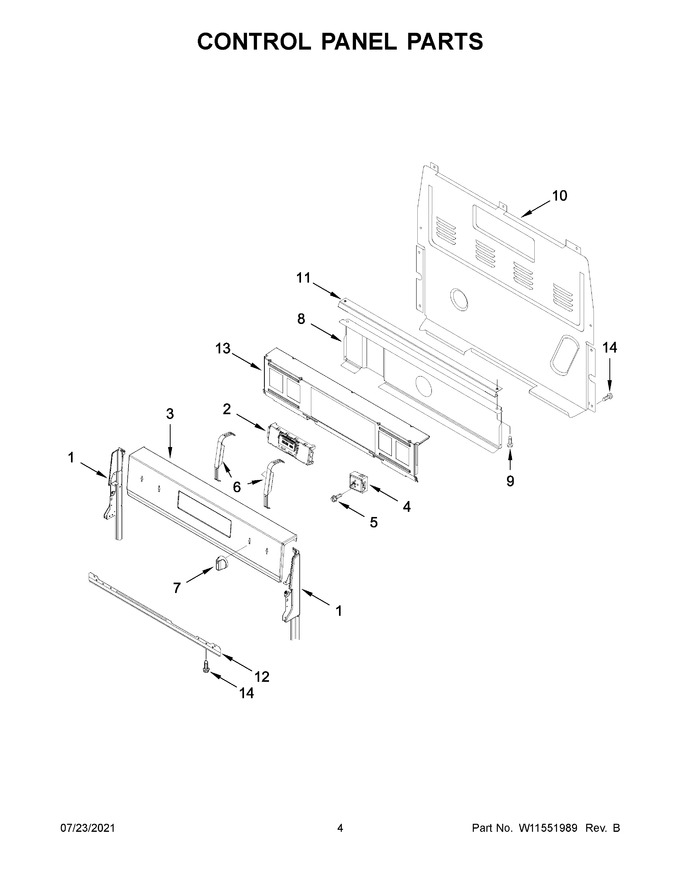

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11259041 | Endcap (white (left)) (Replaces: W11213291) |
|
$ 89.74 | |||||
| 2 | W11546095 | Control, Electronic (lcx) (white) (Replaces: W11428376) |
|
Immediately | $ 314.35 | ||||
| 3 | W11182818 | Console, Assembly (white) (Replaces: W11089992) |
|
$ 447.99 | |||||
| 4 | WPW10434452 | Switch, Infinite (dual) (left Front And Right Front) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 6 | W10856361 | Bracket, Control |
|
- | |||||
| 7 | W11158173 | Knob (white) (Replaces: W11022720) |
|
Immediately | $ 18.46 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.47 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 84.73 | |||||
| 12 | W11051311 | Bracket, Eye Brow (white) |
|
$ 78.28 | |||||
| 13 | W10901802 | Panel, Backer |
|
$ 80.93 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 1A | W11259700 | Endcap (white (right)) (Replaces: W11213293) |
|
$ 89.74 | |||||
| 4A | 5500-287 | Switch, Infinite (right Rear And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 47.15 |
