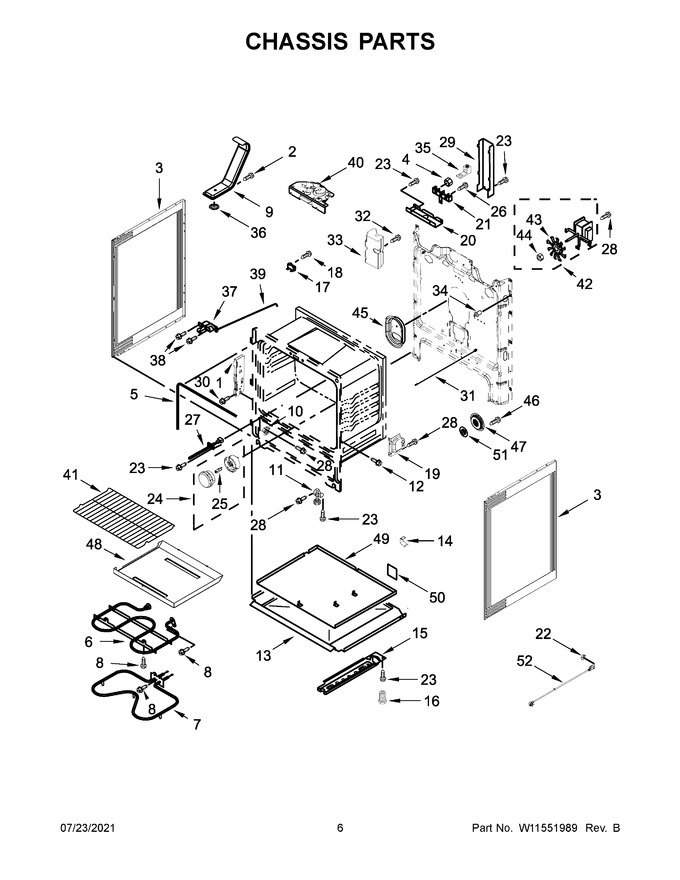

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 8.39
2	WP3196154		Screw   (Replaces: 3196154)				$ 7.04
3	WPW10575396		Panel, Side (white)   (Replaces: W10575396)				$ 133.84
4	WP3400029		Nut   (Replaces: 3400029)			Immediately	$ 6.98
5	W11542153		Seal, Door   (Replaces: W10658354)			Immediately	$ 45.18
6	W10856603		Element, Broil   (Replaces: 9757340)			Immediately	$ 139.16
7	WP9755770		Element, Bake   (Replaces: 9755770)			Immediately	$ 105.89
8	WP3196174		Screw   (Replaces: 3196174)			Immediately	$ 7.04
9	WPW10134285		Tube, Vent   (Replaces: W10134285)			Immediately	$ 225.43
10	W10807823		Glide, Drawer Front   (Replaces: W10674705)			Immediately	$ 16.54
11	WPW10341186		Front Foot Assembly   (Replaces: W10341186)			Immediately	$ 29.33
12	WPW10067840		Screw   (Replaces: W10067840)				$ 6.98
13	W10134121		Tray, Insulation				$ 38.36
14	W10137382		Clip, Panel			Immediately	$ 41.50
15	W11818353		Base Rail Assembly (left)   (Replaces: W10390008)				$ 53.71
16	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 7.07
17	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 42.94
18	3196172		Screw			Immediately	$ 11.55
19	W10404688		Clip, Oven Support				$ 15.17
20	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
21	WP8203546		Block, Terminal   (Replaces: W10246624)			Immediately	$ 27.12
22	7103P02760		Nut		Appelez-nous	-
23	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
24	W11594170		Light Assembly   (Replaces: W11430367)			Immediately	$ 32.36
25	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 24.94
26	WP3400016		Screw   (Replaces: 3400016)				$ 7.16
27	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 96.15
28	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
29	WPW10326122		Cover, Terminal Block   (Replaces: W10326122)				$ 119.66
30	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.04
31	W11370462		Rod, Door Switch				$ 57.97
32	W11135756		Screw   (Replaces: W11034869)				$ 12.63
33	W11135752		Counterweight   (Replaces: W10910404)			Immediately	$ 131.81
34	WP9757262		Switch, Door   (Replaces: W10627802)			Immediately	$ 130.00
35	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 7.61
36	W11268772		Screen, Vent   (Replaces: W11092984)				$ 187.34
37	WP9761013		Front Door Latch Assembly   (Replaces: 9761013)				$ 219.74
38	W11169708		Screw   (Replaces: 3196560)				$ 13.36
39	W10078380		Rod, Latch				$ 81.35
40	WPW10107840		Assembly, Latch (rear)   (Replaces: W10107840)			Immediately	$ 100.71
41	W11520287		Rack, Oven   (Replaces: W11173792)			Immediately	$ 42.16
42	W11582241		Fan, Convection   (Replaces: W11190726)			Immediately	$ 115.48
43	W10758272		Blade, Fan   (Replaces: W10116351)			Immediately	$ 7.12
44	W11548755		Nut   (Replaces: W10213748)				$ 13.02
45	W10134126		Bracket, Fan				$ 20.56
46	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
47	WPW10134124		Cover, Conv Fan   (Replaces: W10134124)			Immediately	$ 87.93
48	W10183712		Tray, Hidden Bake				$ 209.10
49	W10134125		Shield, Heat				$ 136.60
50	W10646923		Card, Insulator				$ 16.78
51	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 7.01
52	W11226497		Cord, Power   (Replaces: W10624591)			Immediately	$ 65.69
15A	W11818353		Base Rail Assembly (right)   (Replaces: W10390007)				$ 53.71
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
NI	W11161831		Insulation, Wrap   (Replaces: W10774939)			Immediately	$ 99.78
NI	W11684917		Insulation, Back   (Replaces: W11127324)				$ 106.60
NI	W11684918		Insulation, Flue   (Replaces: W10333344)			Immediately	$ 30.41
