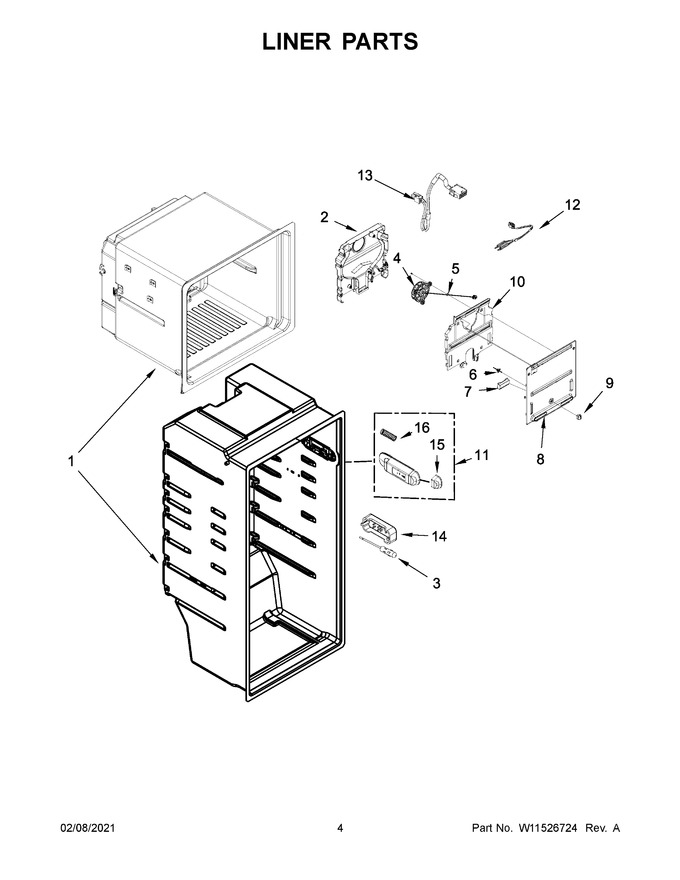

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Box, Burner (not Serviced) |
|
- | |||||
| 2 | W11744511 | Cover Assembly, Back (Replaces: W11235950) |
|
$ 108.74 | |||||
| 3 | NP | Box, Burner (not Serviced) |
|
- | |||||
| 4 | W11369036 | Assembly, Fan Motor (Replaces: W11117547) |
|
Immediately | $ 193.86 | ||||
| 5 | 489468 | Washer |
|
- | |||||
| 6 | W11673316 | Control, Damper (Replaces: W11262026) |
|
$ 67.78 | |||||
| 7 | W11236030 | Wedge, Front |
|
$ 18.83 | |||||
| 8 | W11434067 | Cover, Evaporator Front |
|
- | |||||
| 9 | W11715970 | Knob, Control (Replaces: W11249471) |
|
$ 12.91 | |||||
| 10 | W11741457 | Front, Assembly (Replaces: W11179121) |
|
$ 36.86 | |||||
| 11 | W11446726 | Assembly, Electronic Control (Replaces: W11390538) |
|
Immediately | $ 116.87 | ||||
| 12 | W11624942 | Wire Assemby (includes Thermal Fuse) (Replaces: W11466252) |
|
Immediately | $ 18.81 | ||||
| 13 | W11235113 | Wire Assembly, Ice Maker |
|
- | |||||
| 14 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 75.75 | ||||
| 15 | W11254962 | Button |
|
- | |||||
| 16 | W10520965 | Spring |
|
- |
