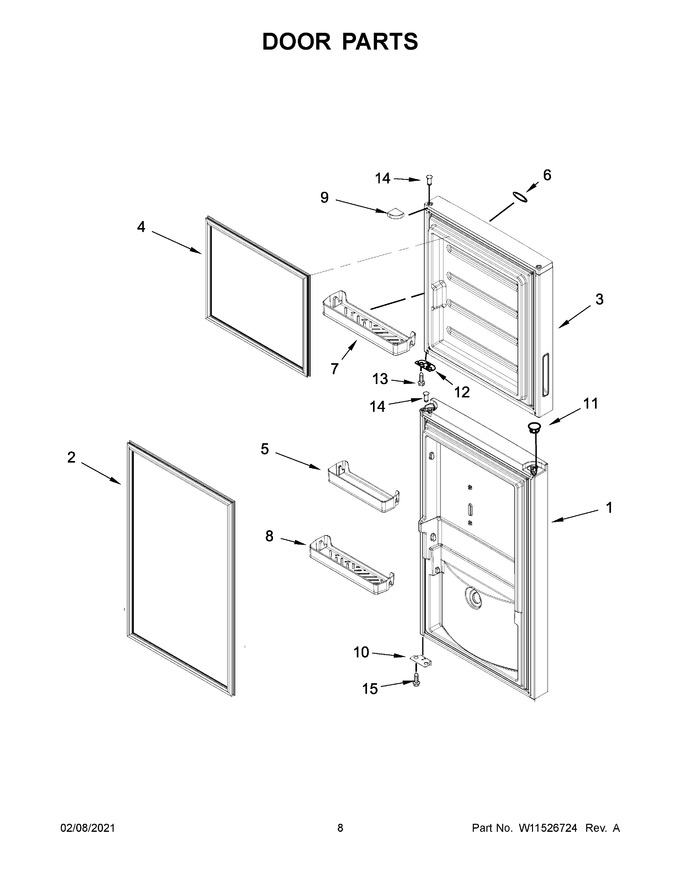

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11554606 | Door, Refrigerator (white) (Replaces: W11317619) |
|
- | |||||
| 2 | W11235133 | Gasket, Refrigerator Door (white) |
|
$ 258.70 | |||||
| 3 | W11374236 | Door, Freezer (white) (Replaces: W11309075) |
|
$ 191.03 | |||||
| 4 | W11736728 | Gasket, Freezer Door (white) (Replaces: W11235127) |
|
$ 178.15 | |||||
| 5 | W11247887 | Bin, Bottle |
|
- | |||||
| 6 | W10337740 | White |
|
- | |||||
| 7 | W11247924 | Door Bin, Freezer |
|
- | |||||
| 8 | W11247889 | Door Bin, Refrigerator |
|
$ 131.43 | |||||
| 9 | W11246845 | Endcap Left Hand (white) |
|
$ 41.18 | |||||
| 10 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 11 | WP2212648 | Plug, Hole (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 12 | WPW10397055 | Bracket, Door Stop (Replaces: W10397055) |
|
Immediately | $ 31.66 | ||||
| 13 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 14 | W11759045 | Thimble, Top (white) (Replaces: W10492018) |
|
Immediately | $ 10.58 | ||||
| 15 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 11A | WP2212651 | Plug, Hole (black) (Replaces: 2212651) |
|
$ 20.75 | |||||
| 11B | W11781924 | Plug, Hole (grey) (Replaces: W11255553) |
|
- | |||||
| 14A | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 10.89 | |||||
| 14B | W11766463 | Thimble, Top (gray) (Replaces: W11289190) |
|
$ 10.58 | |||||
| 1A | W11317618 | Door, Refrigerator (black) |
|
- | |||||
| 1B | W11554604 | Door, Refrigerator (stainless) (Replaces: W11317617) |
|
- | |||||
| 2A | W11235134 | Gasket, Refrigerator Door (black) |
|
$ 258.72 | |||||
| 2B | W11250318 | Gasket, Refrigerator Door (grey) |
|
$ 261.04 | |||||
| 3A | W11374242 | Door, Freezer (black) (Replaces: W11315307) |
|
$ 215.49 | |||||
| 3B | W11554603 | Door, Freezer (stainless) (Replaces: W11317260) |
|
- | |||||
| 4A | W11235130 | Gasket, Freezer Door (black) |
|
$ 257.72 | |||||
| 4B | W11250314 | Gasket, Freezer Door (grey) |
|
Immediately | $ 259.81 | ||||
| 9A | W11246847 | Endcap Left Hand (black) |
|
- | |||||
| 9B | W11246818 | Endcap Left Hand (grey) |
|
$ 41.18 | |||||
| 9C | W11246852 | Endcap Right Hand (white) |
|
$ 39.80 | |||||
| 9D | W11246854 | Endcap Right Hand (black) |
|
$ 39.81 | |||||
| 9E | W11246849 | Endcap Right Hand (grey) |
|
$ 41.18 |
