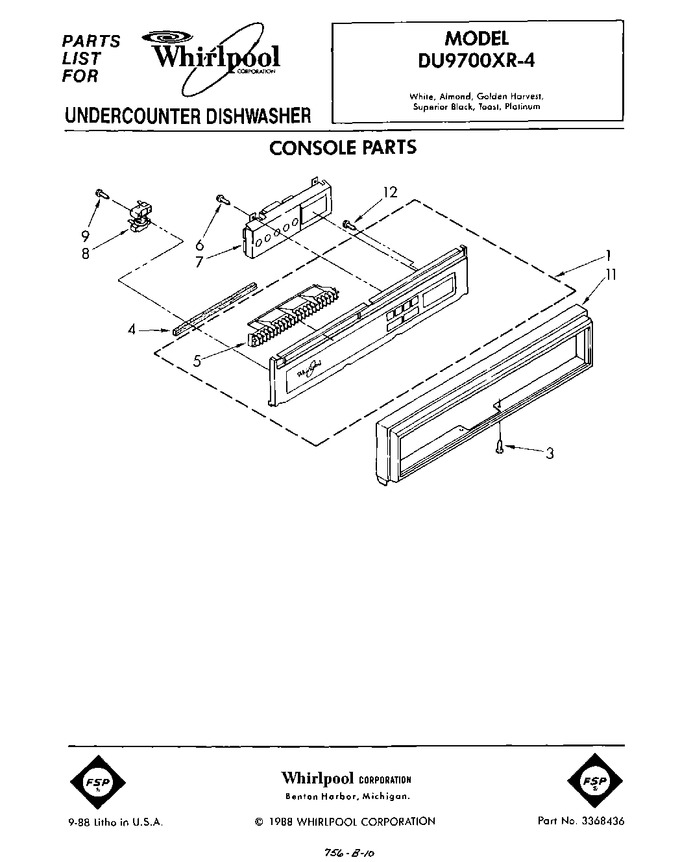

01 - Console
02 - Tub , Literature And Optional
03 - Door
04 - Heater, Pump And Lower Spray Arm
05 - Dishrack
06 - 3367725 Pump And Motor
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3367874 | Console |
|
- | |||||
| 3 | W11693756 | Screw, 8-18 X 5/8 (2) (Replaces: 688983) |
|
Immediately | $ 12.65 | ||||
| 4 | 3368537 | Seal, Foam |
|
- | |||||
| 5 | 304602 | Grill, Vent |
|
- | |||||
| 6 | WP304231 | Screw, 8-18 X 1/2 Slot Hex Wash Hd (4) (Replaces: 304231) |
|
Immediately | $ 6.98 | ||||
| 7 | 3367466 | Control, Electronic |
|
- | |||||
| 8 | 304409 | Relay, Start |
|
- | |||||
| 9 | 301588 | Screw, 8-18 X 1-1/4 Slot Hex Wash Hd |
|
- | |||||
| 11 | 304396 | Bezel, Console |
|
- | |||||
| 12 | 3367296 | Screw, 6-32x7/16 |
|
- |
