View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Console
02 - Tub , Literature And Optional
03 - Door
04 - Heater, Pump And Lower Spray Arm
05 - Dishrack
06 - 3367725 Pump And Motor

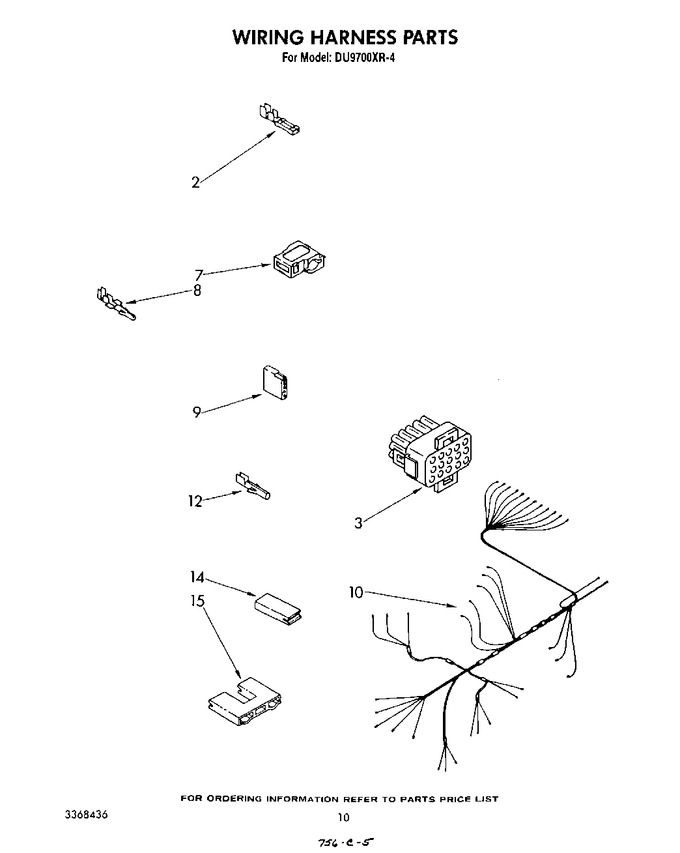

07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 352088 | Terminal, Female |
|
$ 5.83 | |||||
| 3 | 304413 | Plug, Terminal |
|
- | |||||
| 7 | 344936 | Insulator, Terminal |
|
- | |||||
| 8 | 94613 | Terminal |
|
- | |||||
| 9 | 719585 | Receptacle (5-circuit) |
|
- | |||||
| 10 | 3368395 | Harness, Wiring |
|
- | |||||
| 12 | 304412 | Socket |
|
- | |||||
| 14 | 358736 | Connector Block (alternate) |
|
- | |||||
| 14 | 301219 | Connector Block (alternate) |
|
- | |||||
| 15 | 374230 | Connector Block (alternate) |
|
- | |||||
| 15 | 300708 | Connector, Block (alternate) |
|
- |
