01 - Cover Sheet
02 - Cooktop Parts

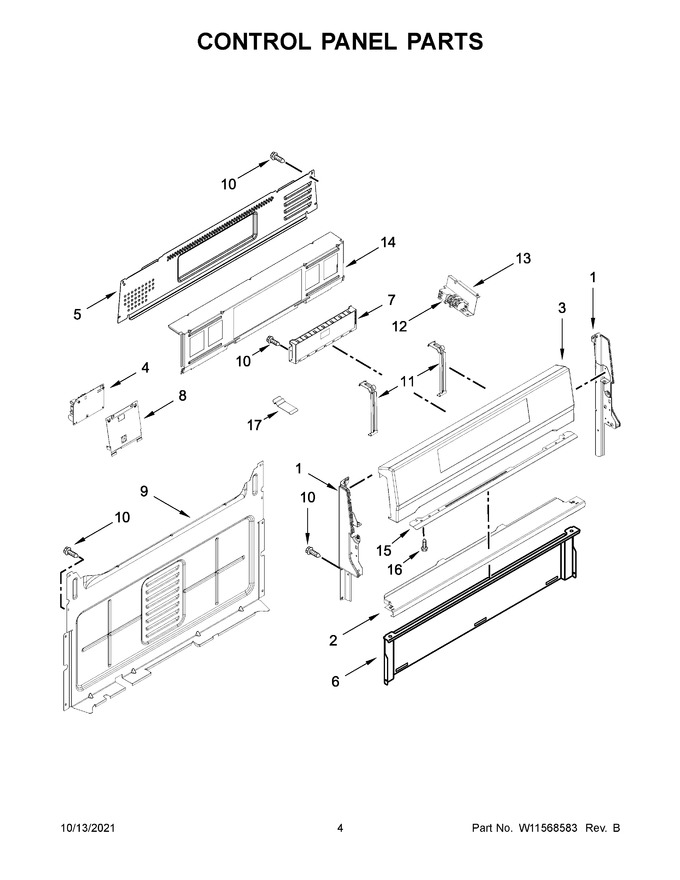

03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11213290 | Endcap (black (left)) |
|
$ 298.09 | |||||
| 2 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 3 | W11175171 | Console (stainless) (Replaces: W10869988) |
|
Immediately | $ 288.79 | ||||
| 4 | W11162730 | Module, Spark Dsi (Replaces: W10920631) |
|
Immediately | $ 196.59 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 110.48 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 91.45 | |||||
| 7 | W11175139 | Control, Electronic (lcx) (black) (Replaces: W10885939) |
|
Immediately | $ 255.70 | ||||
| 8 | W10762981 | Bracket, Mounting |
|
$ 65.50 | |||||
| 9 | W10184251 | Cover, Back |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 11 | W10856361 | Bracket, Control |
|
- | |||||
| 12 | WPW10475149 | Module, Spark (Replaces: W10475149) |
|
Immediately | $ 161.15 | ||||
| 13 | W10901176 | Bracket, Ignitor (Replaces: W10797001) |
|
- | |||||
| 14 | W10901802 | Panel, Backer |
|
$ 80.93 | |||||
| 15 | W11443964 | Bracket, Eye Brow (black) (Replaces: W11051312) |
|
$ 190.66 | |||||
| 16 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 17 | WPW10551614 | Spreader, Clip-spring (Replaces: W10551614) |
|
$ 11.77 | |||||
| 1A | W11213292 | Endcap (black (right)) |
|
$ 61.42 | |||||
| 3A | W11175173 | Console (black Stainless) (Replaces: W10881624) |
|
$ 288.82 |
