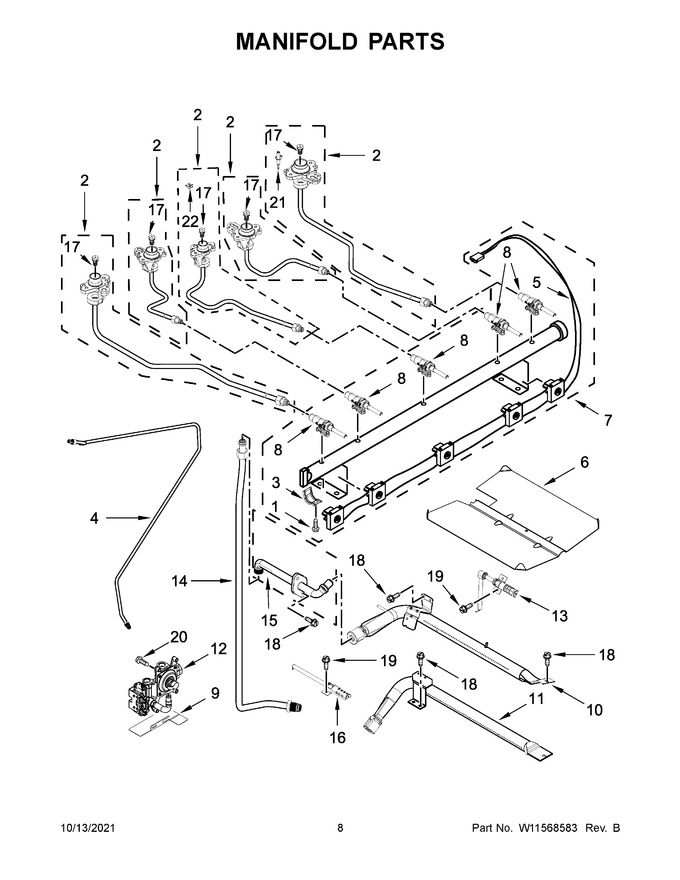

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 6.27 | |||||
| 2 | W11557814 | Orifice Holder Assembly (18k) (left Front) (Replaces: W11459263) |
|
- | |||||
| 3 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 19.50 | |||||
| 4 | W10510125 | Tubing, Main Supply |
|
$ 187.42 | |||||
| 5 | W10906162 | Switch, 5 Burner Manifold Harness (Replaces: W10783317) |
|
$ 162.33 | |||||
| 6 | 3601P33645 | Baffle, Broil Burner |
|
- | |||||
| 7 | W11418925 | Manifold Assembly |
|
Immediately | $ 272.24 | ||||
| 8 | W11628784 | Valve, Gas (left Front And Right Front) (Replaces: W11352012) |
|
$ 66.22 | |||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11676566 | Burner, Broiler (Replaces: W10439242) |
|
$ 79.76 | |||||
| 11 | W10764654 | Burner, Bake (Replaces: W10680035) |
|
Immediately | $ 78.56 | ||||
| 12 | W10919226 | Valve, Gas (Replaces: W10720102) |
|
Immediately | $ 162.50 | ||||
| 13 | WPW10324262 | Igniter, Bake (Replaces: W10324262) |
|
Immediately | $ 93.58 | ||||
| 14 | W10306050 | Tube, Broil Supply (broiler Fitting To Valve) |
|
$ 162.70 | |||||
| 15 | W10776437 | Fitting, Broil |
|
$ 87.80 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 77.23 | ||||
| 17 | W11485988 | Orifice (18k) (left Front) |
|
$ 59.13 | |||||
| 18 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.23 | |||||
| 20 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.16 | |||||
| 21 | W11453920 | Electrode (right Front, Right Rear, And Center) (Replaces: W11428858) |
|
$ 55.16 | |||||
| 22 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 10.71 | ||||
| 17A | W11485873 | Orifice (9.5k) (left Rear) |
|
$ 59.13 | |||||
| 17B | W11700316 | Orifice (15k) (left Front And Right Front) (Replaces: W11485872) |
|
$ 14.34 | |||||
| 17C | W11712434 | Orifice (5k) (right Rear) (Replaces: W11485871) |
|
$ 14.34 | |||||
| 17D | W11485874 | Orifice (8k) (center) |
|
$ 59.13 | |||||
| 21A | W11453940 | Electrode (left Front And Left Rear) (Replaces: W11428831) |
|
$ 55.25 | |||||
| 2A | W11557815 | Orifice Holder Assembly (9.5k) (left Rear) (Replaces: W11459258) |
|
- | |||||
| 2B | W11557816 | Orifice Holder Assembly (15k) (right Front) (Replaces: W11459260) |
|
$ 91.44 | |||||
| 2C | W11557817 | Orifice Holder Assembly (5k) (right Rear) (Replaces: W11459259) |
|
- | |||||
| 2D | W11557818 | Orifice Holder Assembly (8k) (center) (Replaces: W11459261) |
|
$ 91.53 | |||||
| 8A | W11699929 | Valve, Gas (left Rear And Center) (Replaces: W11352013) |
|
$ 60.40 | |||||
| 8B | W11352015 | Valve, Gas (right Rear) |
|
$ 96.89 | |||||
| NI | W11560165 | Lp 5 Orifice Conversion Kit (Replaces: W11489399) |
|
$ 29.37 | |||||
| NI | NP | Following Parts Not Illustrated |
|
- | |||||
| NI | W11087486 | Lp Conversion Kit (bake And Broil) (Replaces: W10566535) |
|
Immediately | $ 101.10 |
