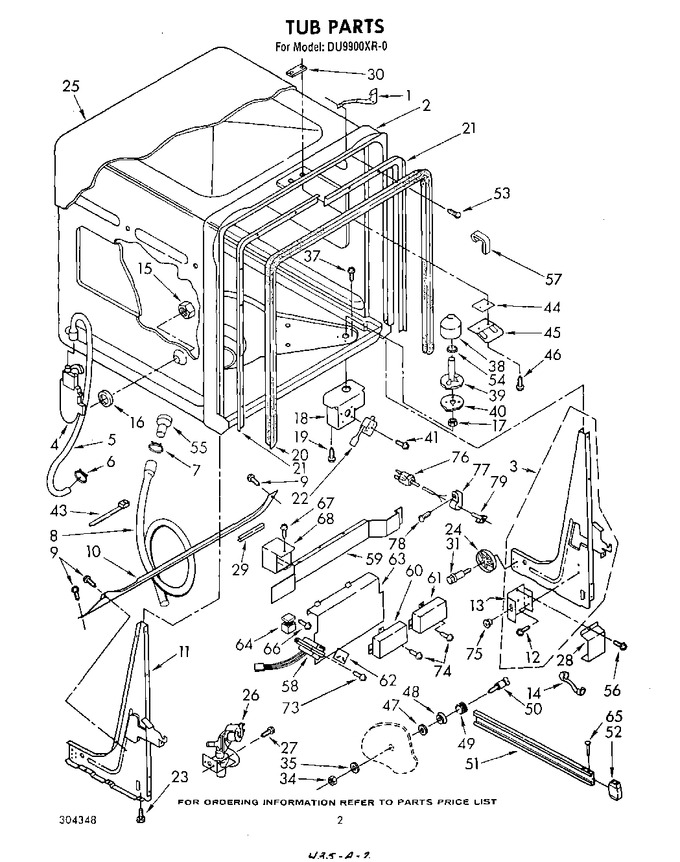

02 - Tub


03 - Door


04 - Console , Literature And Optional


05 - 303876 Pump And Motor


06 - Heater, Pump And Lower Sprayarm


07 - Dishrack


08 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300796		Bracket, Mounting		Appelez-nous	-
2	303110		Tub Assembly		Appelez-nous	-
3	302823		Leg & Hinge Assembly, R.h.		Appelez-nous	-
4	300974		Inlet, Water		Appelez-nous	-
5	304670		Hose, Inlet				$ 67.52
6	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 7.56
7	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
8	675544		Hose, Drain   (Replaces: 719954)			Immediately	$ 133.29
9	WP302868		Screw, 8 X 3/8 Hex Head (4)   (Replaces: 302868)			Immediately	$ 6.98
10	303111		Brace		Appelez-nous	-
11	302822		Leg & Hinge Assembly, L.h.		Appelez-nous	-
12	718178		Screw, 8-32 X 3/8		Appelez-nous	-
13	300067		Box, Terminal		Appelez-nous	-
14	717563		Relief, Strain		Appelez-nous	-
15	713799		Nut, 7/18-16		Appelez-nous	-
16	713878		Gasket		Appelez-nous	-
17	717488		Nut, .125				$ 12.83
18	719342		Bracket, Overflow		Appelez-nous	-
19	718250		Screw, 8 X 1/2 (3)		Appelez-nous	-
20	302090		Gasket, Tub (alternate)		Appelez-nous	-
20	302091		Gasket, Tub (alternate)		Appelez-nous	-
21	302093		Retainer (r.h.)		Appelez-nous	-
21	302094		Retainer (l.h.)		Appelez-nous	-
22	301671		Switch, Pressure (alternate)		Appelez-nous	-
22	304589		Switch, Pressure (alternate)		Appelez-nous	-
22	301672		Switch, Pressure (alternate)		Appelez-nous	-
23	8193716		Leg, Leveling (2)   (Replaces: 302849)			Immediately	$ 76.25
24	302819		Wheel, Leg (2)				$ 5.65
25	W11086533		Shield, Sound   (Replaces: 303483)			Immediately	$ 28.17
26	DW-66		Valve, Water Inlet (alternate)   (Replaces: 300453)				$ 63.58
26	303650		Valve, Water Inlet (alternate)				$ 76.90
27	WP90767		Screw, 8a X 3/8 (2)   (Replaces: 90767)			Immediately	$ 7.04
28	300068		Cover, Terminal Box				$ 30.14
29	303294		Edge Protector		Appelez-nous	-
30	303080		Nut, Twin Spring		Appelez-nous	-
31	302818		Screw, Shoulder (2)		Appelez-nous	-
34	718829		Locknut (8)		Appelez-nous	-
35	717624		Washer (8)		Appelez-nous	-
37	WP488729		Screw, 8-18 X 1/2   (Replaces: 717236)			Immediately	$ 7.01
38	718035		Float		Appelez-nous	-
39	719967		Standpipe, Overflow		Appelez-nous	-
40	719966		Gasket, Overflow		Appelez-nous	-
41	302203		Screw, 4-40 X 9/16		Appelez-nous	-
43	WPW10144763		Clip, Strap   (Replaces: 596490)				$ 6.80
44	712302		Shim		Appelez-nous	-
45	300233		Strike		Appelez-nous	-
46	WP308685		Screw, 10-12 X 1/2 (2)   (Replaces: 9416643)			Immediately	$ 7.08
47	718750		Washer (8)		Appelez-nous	-
48	718817		Washer, Cup (8)		Appelez-nous	-
49	300844		Wheel Tub (8)		Appelez-nous	-
50	712499		Screw, Shoulder (8)		Appelez-nous	-
51	303297		Track (2)		Appelez-nous	-
52	303299		End Cap, Track (4)		Appelez-nous	-
53	719266		Screw, 8-18 X 5/8 (10)		Appelez-nous	-
54	301662		Gasket (2)		Appelez-nous	-
55	301656		Insert, Cup-hose		Appelez-nous	-
56	WP90767		Screw, 8a X 3/8 (1)   (Replaces: 90767)			Immediately	$ 7.04
57	301663		Clip, Gasket (2)		Appelez-nous	-
58	60740		Transformer				$ 12.58
59	302324		Bracket, Mounting		Appelez-nous	-
60	302211		Relay, 3-coil (main) (``a``)		Appelez-nous	-
61	302210		Relay, 3-coil (motor) (``b``)		Appelez-nous	-
62	302424		Barrier, Transformer		Appelez-nous	-
63	302425		Barrier, Relays		Appelez-nous	-
64	302331		Relay, Start		Appelez-nous	-
65	303298		Pin, Track		Appelez-nous	-
66	301588		Screw, 8-18 X 1-1/4		Appelez-nous	-
67	354239		Rivet, Plastic (2)		Appelez-nous	-
68	302332		Barrier, Relay		Appelez-nous	-
73	WP90767		Screw, 8a X 3/8 (5)   (Replaces: 90767)			Immediately	$ 7.04
74	WP90767		Screw Tapping (2)   (Replaces: 300890)			Immediately	$ 7.04
75	302770		Bushing		Appelez-nous	-
76	302764		Power Cord		Appelez-nous	-
77	596553		Clamp, Strain Relief		Appelez-nous	-
78	719266		Screw, 8 A X 3/8		Appelez-nous	-
79	770754		Wire Connector		Appelez-nous	-
