SELECT A DIAGRAM

02 - Tub


03 - Door

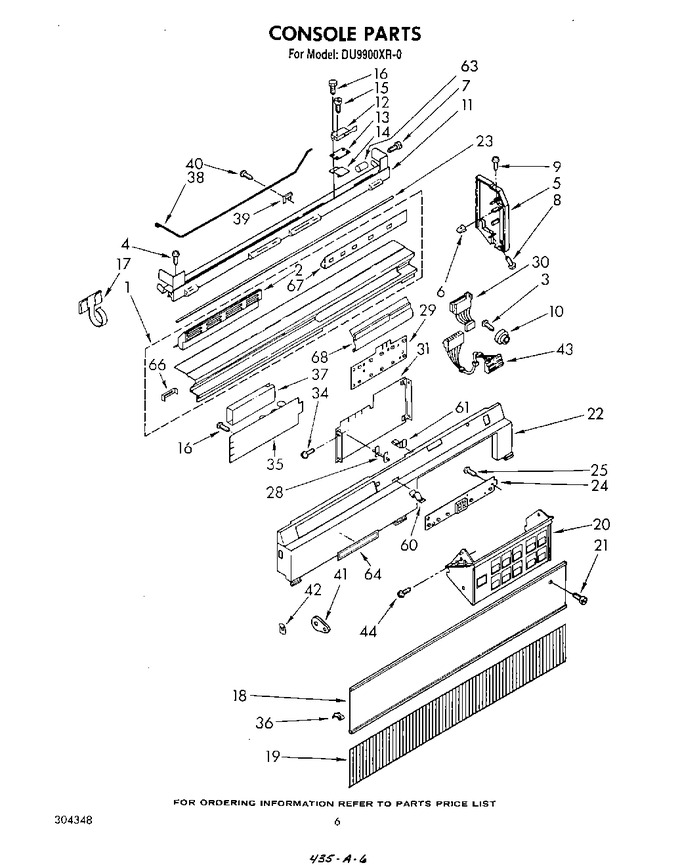

04 - Console , Literature And Optional


05 - 303876 Pump And Motor


06 - Heater, Pump And Lower Sprayarm


07 - Dishrack


08 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	302549		Bezel Assembly		Appelez-nous	-
2	301878		Grille, Vent		Appelez-nous	-
3	W11693756		Screw, 8-18 X 5/8   (Replaces: 9414713)			Immediately	$ 12.65
4	WP489128		Screw (1)   (Replaces: 98209)				$ 9.79
5	302169		End Cap, R.h.		Appelez-nous	-
5	302170		End Cap, L.h.		Appelez-nous	-
6	302267		Clip, ``u`` Type (2)		Appelez-nous	-
7	WP488787		Screw, 8-18 X 1/2 (2)   (Replaces: 9418000)				$ 9.52
8	W11693756		Screw, 8-18 X 5/8 (2)   (Replaces: 688983)			Immediately	$ 12.65
9	301087		Screw, 12 X 7/8 (2)		Appelez-nous	-
10	302186		Bumper, Rubber		Appelez-nous	-
11	302587		Handrail, Hinge Assembly		Appelez-nous	-
12	302202		Switch, Micro		Appelez-nous	-
13	302466		Insulator, Terminal		Appelez-nous	-
14	302201		Bracket, Switch Mounting		Appelez-nous	-
15	302203		Screw, 4-40 X 9/16		Appelez-nous	-
16	WP488234		Screw, 8-32 X 1/4 (1)   (Replaces: 453067)				$ 6.07
17	302426		Clip, Cable		Appelez-nous	-
18	302550		Door, Tiltout		Appelez-nous	-
19	303274		Insert, Corduroy		Appelez-nous	-
20	303224		Touch Module		Appelez-nous	-
21	302191		Screw, 8 X 5/8 (hil) (4)		Appelez-nous	-
22	302558		Control Panel Assembly		Appelez-nous	-
23	302205		Rod, Hinge		Appelez-nous	-
24	303095		Display L.e.d.		Appelez-nous	-
25	303220		Screw, 8-18 X 3/8 (2)		Appelez-nous	-
28	302220		Standoff (4)		Appelez-nous	-
29	302230		Indicator, L.e.d.		Appelez-nous	-
30	302418		Harness, Ind/main		Appelez-nous	-
31	303228		Microcomputer Assembly		Appelez-nous	-
34	WP488234		Screw, 8-32 X 1/4 (4)   (Replaces: 9412221)				$ 6.07
35	303664		Control, Power Supply		Appelez-nous	-
36	302547		Clip, Panel Retainer (2)		Appelez-nous	-
37	302423		Barrier, Power Supply		Appelez-nous	-
38	302207		Spring, Door		Appelez-nous	-
39	302235		Retainer, Spring (2)		Appelez-nous	-
40	WP489128		Screw (2)   (Replaces: 98209)				$ 9.79
41	302378		Arm, Linkage		Appelez-nous	-
42	302377		Pushnut		Appelez-nous	-
43	302984		Harness, Display/main		Appelez-nous	-
44	302206		Screw, 8-32 X 3/8 (4)		Appelez-nous	-
60	302557		Clip, Mounting		Appelez-nous	-
61	302748		Hanger, Cable		Appelez-nous	-
63	675679		Protector, Screw   (Replaces: 346308)			Immediately	$ 31.70
64	303511		Label, Solid State		Appelez-nous	-
66	302994		Clip (2)		Appelez-nous	-
67	303280		Lens, Indicator		Appelez-nous	-
68	303102		Barrier, Water		Appelez-nous	-
	LIT303310		Instructions, Installation		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	799640		Kit, Epoxy Patch (white)		Appelez-nous	-
	285368		Platinum (uncut)		Appelez-nous	-
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	261891		Golden Harvest (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350941		Leveler (thinner)		Appelez-nous	-
	350942		Primer (white)   (Replaces: 206922)				$ 80.69
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	285365		Toast		Appelez-nous	-
	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
	261890		Golden Harvest		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	675506		Tine Tip Repair Kit (blue-enough For Two Complete Dishracks)		Appelez-nous	-
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
	LIT304348		List, Repair Parts		Appelez-nous	-
	LIT304280		Guide, Use & Care		Appelez-nous	-
	LIT304157		Sheet, Tech (service Information)		Appelez-nous	-
	LIT304674		Tag, Energy Fact		Appelez-nous	-
	675476		Vinyl Touch Up (blue)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
