01 - Cover Sheet
02 - Oven Parts

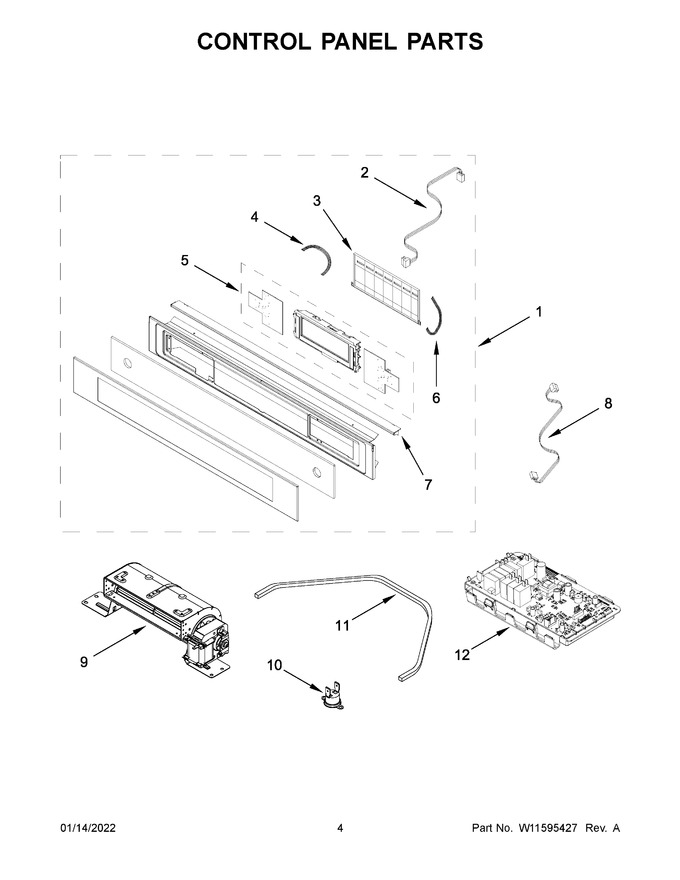

03 - Control Panel Parts
04 - Oven Door Parts
05 - Internal Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11760807 | Assembly, Control Panel (black) (Replaces: W11594176) |
|
Immediately | $ 788.87 | ||||
| 2 | W11348035 | Harness, Touch Display |
|
Immediately | $ 60.62 | ||||
| 3 | W11348132 | Cover, Control |
|
- | |||||
| 4 | W11348036 | Wiring, Right Control |
|
Immediately | $ 62.20 | ||||
| 5 | W11594229 | Pcba, User Interface (Replaces: W11594177) |
|
$ 365.54 | |||||
| 6 | W11348033 | Wiring, Side Control |
|
- | |||||
| 7 | W11594231 | Trim, Vent (black) (Replaces: W11594195) |
|
- | |||||
| 8 | W11348046 | Harness, Display To Power Unit |
|
$ 60.84 | |||||
| 9 | W11347859 | Blower, Cooling Fan |
|
Immediately | $ 352.26 | ||||
| 10 | W11259047 | Thermostat, 165 Celcius (with Bracket) (Replaces: W10490220) |
|
Immediately | $ 169.52 | ||||
| 11 | W10519009 | Gasket, Blower Motor |
|
- | |||||
| 12 | W11683043 | Board, Power (Replaces: W11594206) |
|
$ 380.86 |
