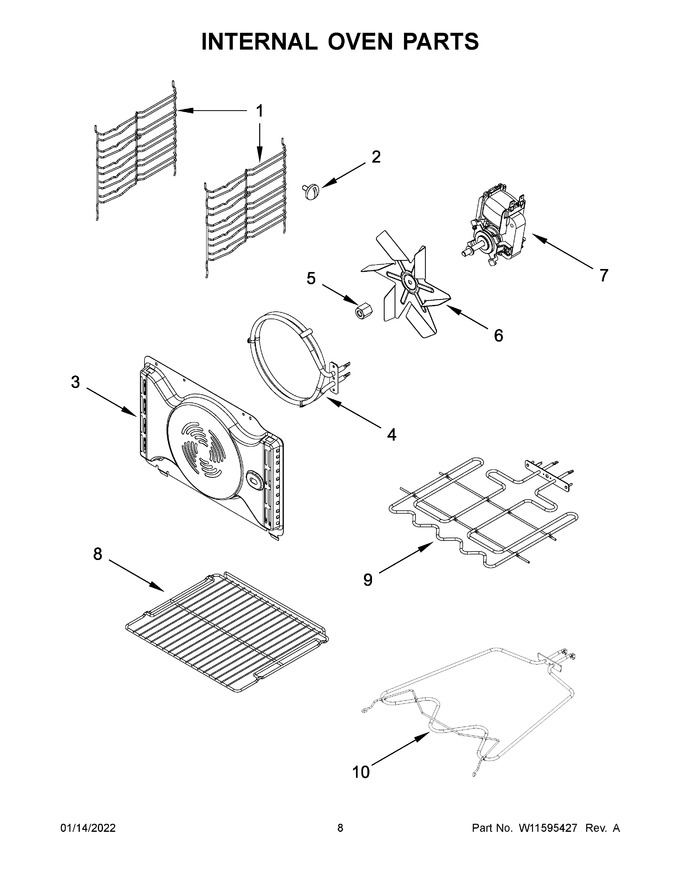

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11236920 | Grid, Oven Rack (Replaces: W10762741) |
|
$ 76.09 | |||||
| 2 | W10519022 | Screw, Grid |
|
$ 11.95 | |||||
| 3 | W11594223 | Baffle, Convection Fan (Replaces: W11594175) |
|
$ 149.19 | |||||
| 4 | W11347860 | Element, Convection |
|
$ 133.06 | |||||
| 5 | W11766498 | Nut, Fan (Replaces: W10901439) |
|
Immediately | $ 10.94 | ||||
| 6 | W11752199 | Blade, Fan (Replaces: W10901438) |
|
$ 117.09 | |||||
| 7 | W11740804 | Motor, Convection Fan (Replaces: W11347858) |
|
$ 166.35 | |||||
| 8 | W11236918 | Rack, Oven (Replaces: W10635612) |
|
Immediately | $ 37.67 | ||||
| 9 | W11347861 | Element, Upper Grill |
|
$ 318.47 | |||||
| 10 | W11348032 | Element, Lower |
|
$ 138.81 |
