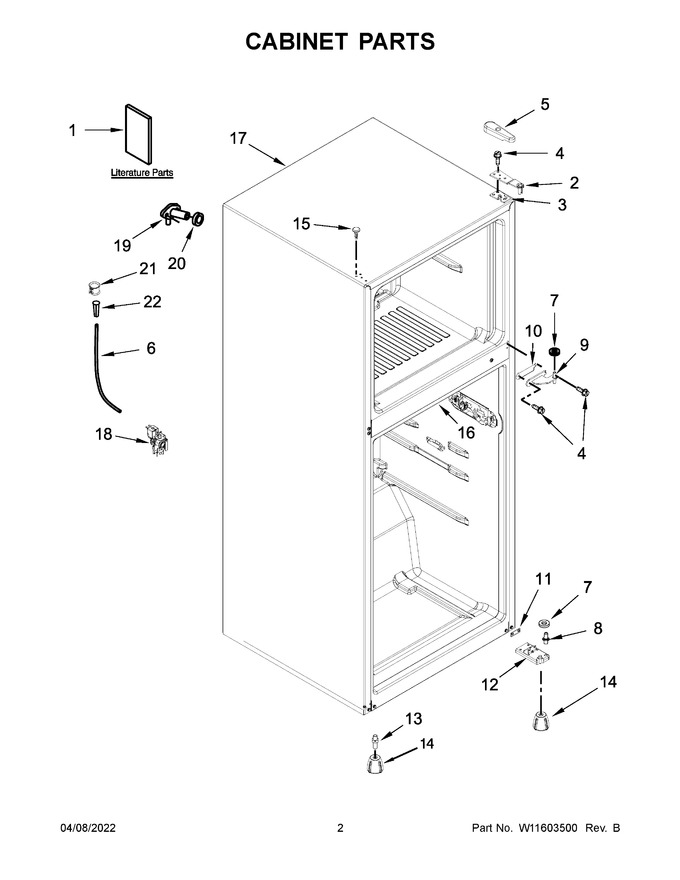

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11407697 | Tech Sheet |
|
- | |||||
| 2 | W11191773 | Assembly, Top Hinge |
|
$ 61.83 | |||||
| 3 | W10399311 | Shim, Top Hinge |
|
$ 13.91 | |||||
| 4 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 5 | W11467695 | Cover, Hinge (white) |
|
- | |||||
| 6 | W10823511 | Tube, Water (Replaces: 2181944) |
|
Immediately | $ 29.17 | ||||
| 7 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 9.79 | ||||
| 8 | W11678964 | Pin, Hinge (bottom) (Replaces: W11183254) |
|
Immediately | $ 7.07 | ||||
| 9 | W11173998 | Hinge, Center |
|
$ 62.36 | |||||
| 10 | W11269182 | Shim, Center Hinge (Replaces: W11175787) |
|
$ 14.48 | |||||
| 11 | W11269192 | Shim, Bottom Hinge (Replaces: W10919908) |
|
Immediately | $ 14.47 | ||||
| 12 | W11580021 | Assembly, Bottom Hinge (Replaces: W11217747) |
|
Immediately | $ 29.69 | ||||
| 13 | R30039 | Screw, Leveler |
|
- | |||||
| 14 | W11545335 | Leg, Leveler (Replaces: W11176400) |
|
Immediately | $ 14.02 | ||||
| 15 | WPW10520304 | Plug, Hole (white) (Replaces: W10520304) |
|
Immediately | $ 16.47 | ||||
| 16 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 17 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 18 | WPW10498976 | Valve, Inlet (Replaces: W10498976) |
|
Immediately | $ 113.49 | ||||
| 19 | W11700599 | Fitting, Water Tube (Replaces: W11265079) |
|
- | |||||
| 20 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 8.94 | ||||
| 21 | W10861184 | Clamp, Tube (Replaces: W10329003) |
|
$ 56.48 | |||||
| 22 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.06 | |||||
| 15A | WPW10520305 | Plug, Hole (black) (Replaces: W10520305) |
|
$ 16.44 | |||||
| 15B | WPW10520307 | Plug, Hole (grey) (Replaces: W10520307) |
|
Immediately | $ 6.47 | ||||
| 1A | W11331641 | Use And Care Guide |
|
- | |||||
| 1B | W11555150 | Energy Guide |
|
- | |||||
| 5A | W11467697 | Cover, Hinge (black) |
|
- | |||||
| 5B | W11467696 | Cover, Hinge (grey) |
|
$ 20.96 |
