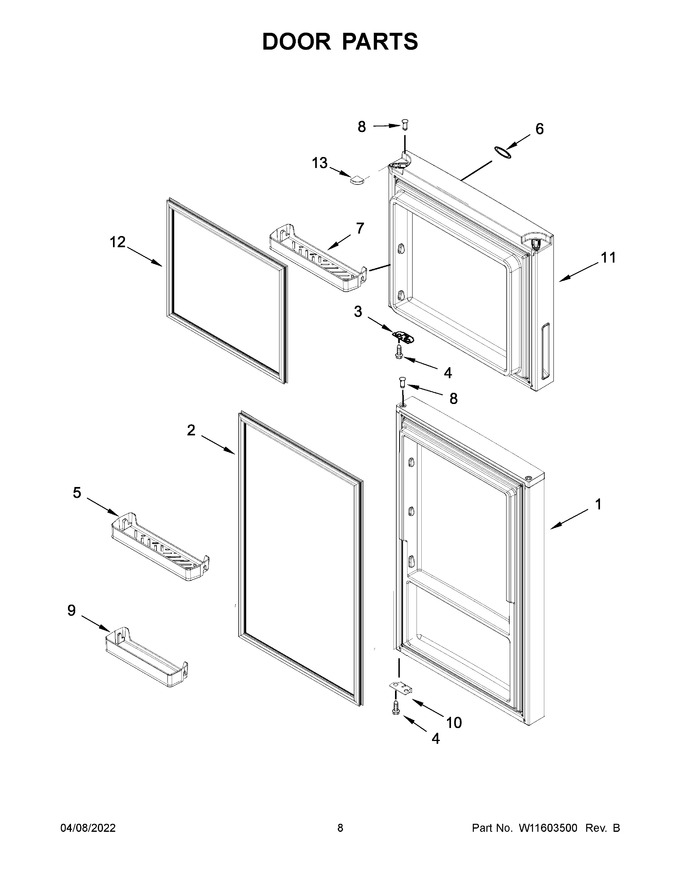

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11594281		Door, Refrigerator (white)   (Replaces: W11309088)				$ 477.99
2	W11250317		Gasket, Refrigerator Door (white)				$ 116.47
3	WPW10397055		Bracket, Door Stop   (Replaces: W10397055)			Immediately	$ 31.66
4	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.07
5	W11247889		Door Bin, Refrigerator				$ 131.43
6	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
7	W11247924		Door Bin, Freezer		Appelez-nous	-
8	W11759045		Thimble (white)   (Replaces: W10492018)			Immediately	$ 10.58
9	W11783665		Bin, Bottle   (Replaces: W11291426)			Immediately	$ 54.02
10	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
11	W11408049		Door, Freezer (white)   (Replaces: W11318664)				$ 342.62
12	W11736728		Gasket, Freezer Door (white)   (Replaces: W11235127)				$ 178.15
13	W11246845		Endcap (white)				$ 41.18
11A	W11374242		Door, Freezer (black)   (Replaces: W11506849)				$ 215.49
11B	W11374244		Door, Freezer (stainless)   (Replaces: W11506851)				$ 235.18
12A	W11235130		Gasket, Freezer Door (black)				$ 257.72
12B	W11250314		Gasket, Freezer Door (grey)			Immediately	$ 259.81
13A	W11246847		Endcap (black)		Appelez-nous	-
13B	W11246818		Endcap (grey)				$ 41.18
13C	W11246852		Endcap Right Hand (white)				$ 39.80
13D	W11246854		Endcap Right Hand (black)				$ 39.81
13E	W11246849		Endcap Right Hand (grey)				$ 41.18
1A	W11594279		Door, Refrigerator (black)   (Replaces: W11506848)		Appelez-nous	-
1B	W11594280		Door, Refrigerator (stainless)   (Replaces: W11506850)				$ 495.94
2A	W11506869		Gasket, Refrigerator Door (black)		Appelez-nous	-
2B	W11250316		Gasket, Refrigerator Door (grey)		Appelez-nous	-
8A	W11189115		Thimble (black)   (Replaces: W10334042)				$ 10.89
8B	W11766463		Thimble (gray)   (Replaces: W11289190)				$ 10.58
