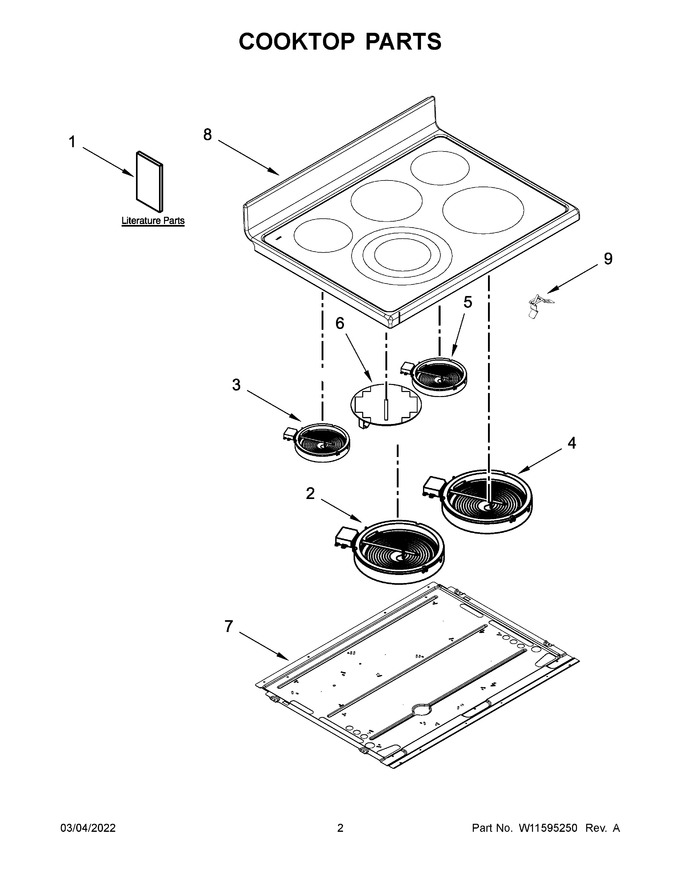

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Internal Oven Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11427490		Owner's Manual		Appelez-nous	-
2	W11101459		Element (2700w) (left Front)   (Replaces: W10670279)			Immediately	$ 194.15
3	WPW10270604		Element (700w) (left Rear)   (Replaces: W10270604)			Immediately	$ 191.56
4	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 201.29
5	W11171119		Element (1200w) (right Rear)   (Replaces: 8273994)			Immediately	$ 164.01
6	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 113.96
7	WPW10260946		Panel, Element Support   (Replaces: W10260946)				$ 115.80
8	W10789672		Cooktop (black)   (Replaces: W10687990)				$ 600.35
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
1A	W11430269		Quick Start Guide		Appelez-nous	-
1B	W11325874		Tech Sheet		Appelez-nous	-
NI	W11172427		Harness, Infinite Switch (right)				$ 165.50
NI	8019P02660		Clip, Wire-wrap Nylon		Appelez-nous	-
NI	W11171874		Harness, Cooktop				$ 201.57
NI	8019P01360		Clip, Wire Lock		Appelez-nous	-
NI	7401P15760		Block, Bare Wire Adapter		Appelez-nous	-
NI	W11190444		Harness, Main			Immediately	$ 273.48
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	7101P02760		Screw, Ground		Appelez-nous	-
NI	W11172428		Harness, Eol (dofsr)		Appelez-nous	-
NI	7103P02760		Nut		Appelez-nous	-
NI	W11172531		Harness, Sensor & Locks				$ 102.17
NI	W11172425		Harness, Infinite Switch (left)				$ 173.49
