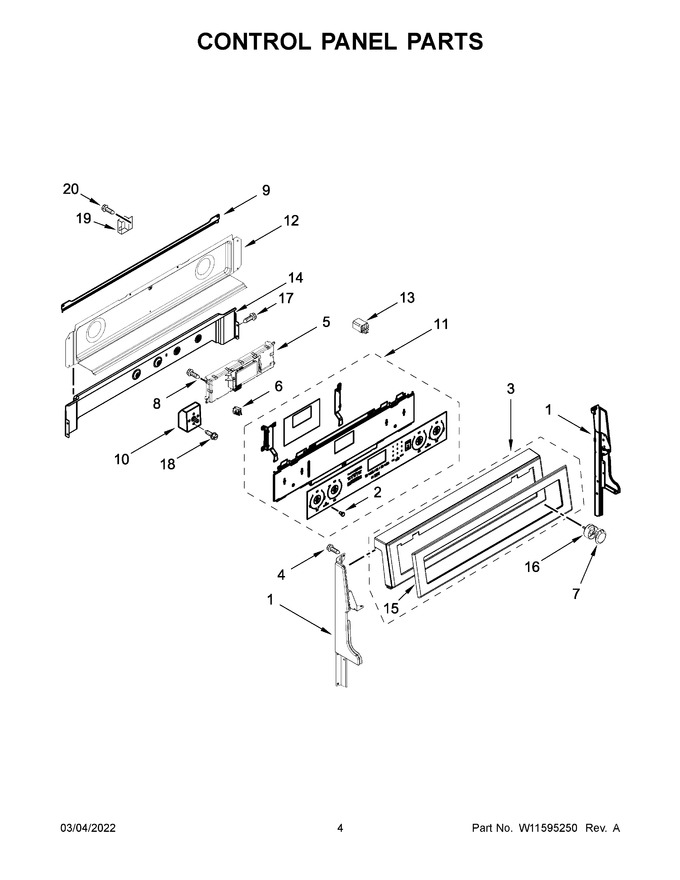

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319109 | Support, Backguard (black (left)) |
|
$ 92.84 | |||||
| 2 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.23 | ||||
| 3 | W11084228 | Console (black Stainless) (Replaces: W11024860) |
|
$ 561.98 | |||||
| 4 | 7101P63360 | Screw (black) |
|
- | |||||
| 5 | W11594169 | Control, Maxwell Electronic (Replaces: W11515095) |
|
Immediately | $ 490.84 | ||||
| 6 | 7407P13660 | Light, Indicator |
|
- | |||||
| 7 | W11156487 | Knob (stainless) (Replaces: W10823529) |
|
Immediately | $ 61.25 | ||||
| 8 | 7101P43460 | Screw |
|
- | |||||
| 9 | WPW10299338 | Shield, Wire Cover (Replaces: W10299338) |
|
$ 96.60 | |||||
| 10 | WPW10296657 | Switch, Infinite (left Front) (Replaces: W10296657) |
|
Immediately | $ 317.02 | ||||
| 11 | W11527486 | Assembly, User Interface (includes Light Feature) (black (for Stainless Model Only)) |
|
Immediately | $ 372.93 | ||||
| 12 | W10776098 | Cover, Backguard |
|
$ 135.81 | |||||
| 13 | W10326400 | Relay (12v) |
|
$ 70.90 | |||||
| 14 | W10278697 | Shield, Vent |
|
Immediately | $ 183.33 | ||||
| 15 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 16 | W11368920 | Bezel, Knob (Replaces: W10645811) |
|
Immediately | $ 60.55 | ||||
| 17 | W11245710 | Screw (Replaces: 9780274) |
|
$ 14.75 | |||||
| 18 | W10674068 | Screw |
|
$ 24.39 | |||||
| 19 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 20 | 7101P33860 | Screw |
|
- | |||||
| 10A | WPW10295048 | Switch, Infinite (left Rear) (Replaces: W10295048) |
|
Immediately | $ 159.95 | ||||
| 10B | WPW10312185 | Switch, Infinite (right Front) (Replaces: W10312185) |
|
Immediately | $ 162.10 | ||||
| 10C | WP7403P238-60 | Switch, Infinite (right Rear) (Replaces: 7403P37360) |
|
Immediately | $ 78.52 | ||||
| 1A | W10319111 | Support, Backguard (black (right)) |
|
$ 43.80 |
