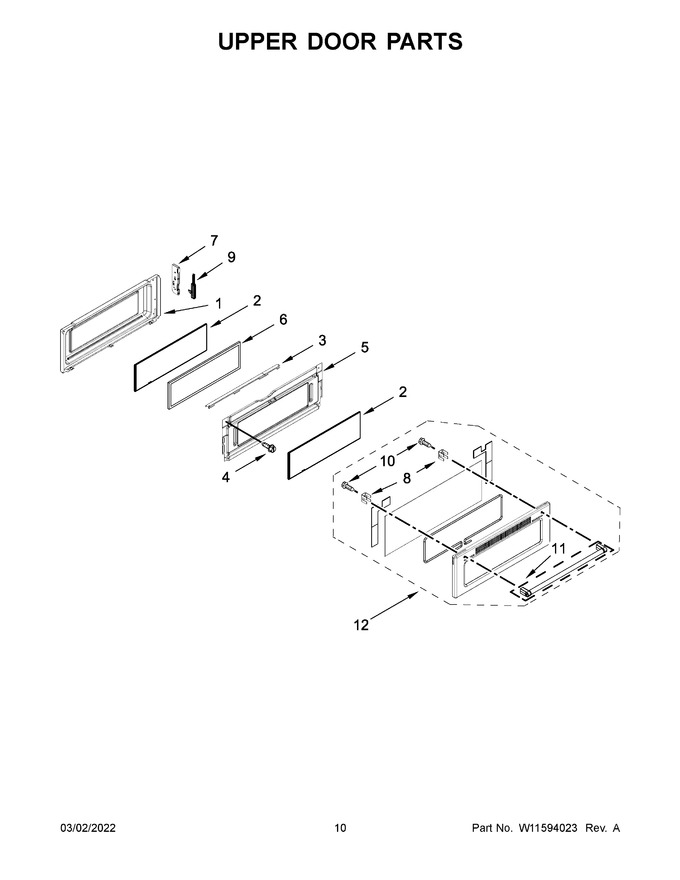

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11051040 | Lining, Door |
|
$ 258.00 | |||||
| 2 | W11132120 | Glass, Inner (Replaces: W11099272) |
|
$ 153.71 | |||||
| 3 | WPW10272708 | Frame, Glass (Replaces: W10272708) |
|
$ 147.37 | |||||
| 4 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 6.47 | ||||
| 5 | W10485723 | Retainer, Insulation |
|
$ 216.36 | |||||
| 6 | WPW10321271 | Insulation, Door (Replaces: W10321271) |
|
$ 85.01 | |||||
| 7 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 8 | W10575917 | Spacer, Vent Trim (stainless Models Only) |
|
$ 11.38 | |||||
| 9 | WPW10485733 | Hinge, Door (left) (Replaces: W10485733) |
|
Immediately | $ 53.63 | ||||
| 10 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.09 | ||||
| 11 | W11305107 | Assembly, Handle (black) |
|
$ 166.80 | |||||
| 12 | W11156495 | Assembly, Door (black Stainless) (Replaces: W10861414) |
|
$ 733.37 | |||||
| 9A | WPW10485732 | Hinge, Door (right) (Replaces: W10485732) |
|
Immediately | $ 50.18 |
