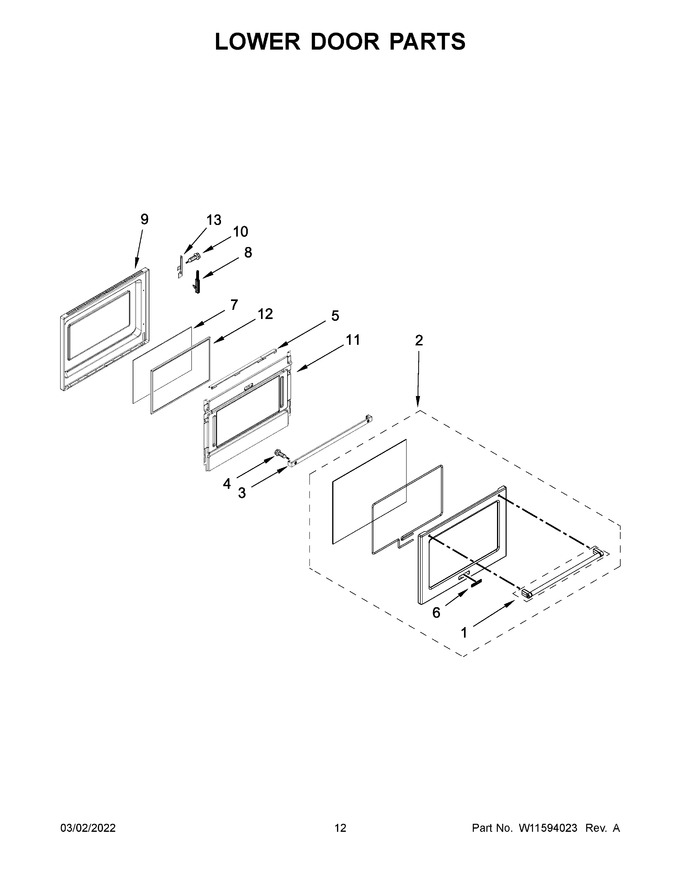

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11305107 | Assembly, Handle (black) |
|
$ 166.80 | |||||
| 2 | W11599839 | Glass-door (Replaces: W11528017) |
|
- | |||||
| 3 | W10575689 | Bracket, Handle (stainless Models Only) |
|
$ 125.14 | |||||
| 4 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 6.98 | ||||
| 5 | WPW10272594 | Frame, Glass (Replaces: W10272594) |
|
Immediately | $ 169.19 | ||||
| 6 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 65.31 | ||||
| 7 | WP9757706 | Glass, Inner (Replaces: 9757706) |
|
Immediately | $ 127.76 | ||||
| 8 | WPW10335434 | Hinge, Door (left) (Replaces: W10335434) |
|
Immediately | $ 88.20 | ||||
| 9 | WPW10272698 | Lining, Door (Replaces: W10272698) |
|
$ 296.33 | |||||
| 10 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 6.47 | ||||
| 11 | W10340464 | Retainer, Insulation |
|
$ 248.40 | |||||
| 12 | WPW10321285 | Insulation, Door (Replaces: W10321285) |
|
$ 91.22 | |||||
| 13 | WPW10272329 | Receiver (left) (Replaces: W10272329) |
|
$ 69.53 | |||||
| 13A | WPW10272328 | Receiver (right) (Replaces: W10272328) |
|
$ 77.18 | |||||
| 8A | WPW10335433 | Hinge, Door (right) (Replaces: W10335433) |
|
$ 89.99 |
