01 - Cover Sheet

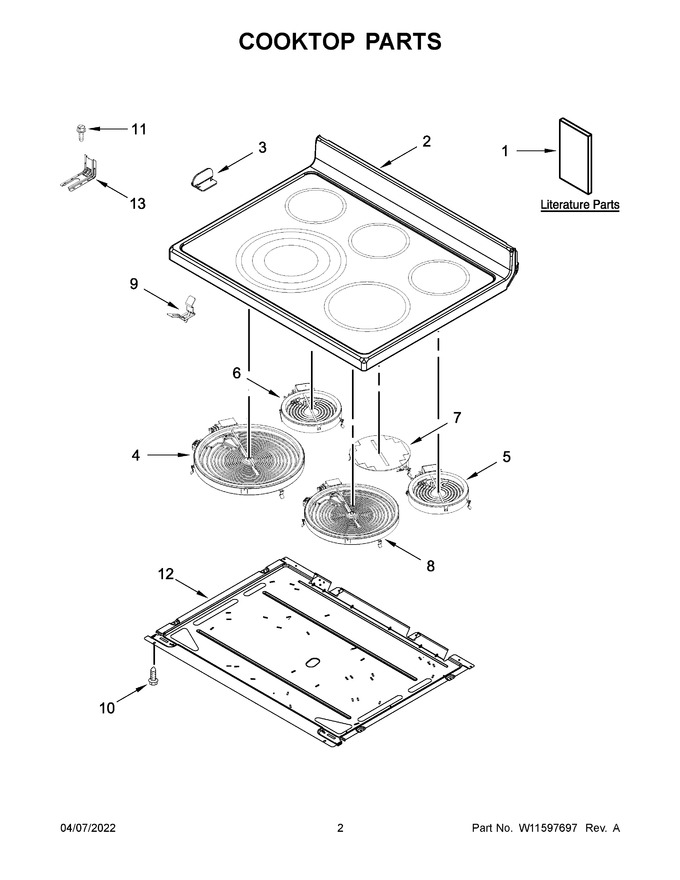

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11432242		Owners Manual (tech Sheet)		Appelez-nous	-
2	W10872562		Cooktop (black)   (Replaces: W10828424)			Immediately	$ 695.14
3	W10607641		Bracket, Cooktop (left)				$ 28.73
4	W11563195		Element (3000w) (left Front)   (Replaces: W11318371)			Immediately	$ 200.32
5	W11171119		Element (1200w) (right Front And Left Rear)   (Replaces: W10248261)			Immediately	$ 164.01
6	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 130.79
7	W11041453		Element, Warm Zone   (Replaces: W10799048)				$ 113.96
8	W11517959		Element (3000/1400w) (right Front)   (Replaces: W10275048)			Immediately	$ 121.00
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
11	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 122.99
13	W11447673		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.64
1A	W11503313		Tech Sheet		Appelez-nous	-
1B	W11435579		Quick Start Guide		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
NI	W11212183		Harness, Sensor				$ 201.98
NI	W11134592		Harness, Warm Zone				$ 100.51
NI	W11190447		Harness, Cooktop (left)			Immediately	$ 169.55
NI	W11188421		Harness, Cooktop (right)			Immediately	$ 183.65
NI	W11766526		Harness, Main   (Replaces: W11488388)			Immediately	$ 207.71
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
