View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

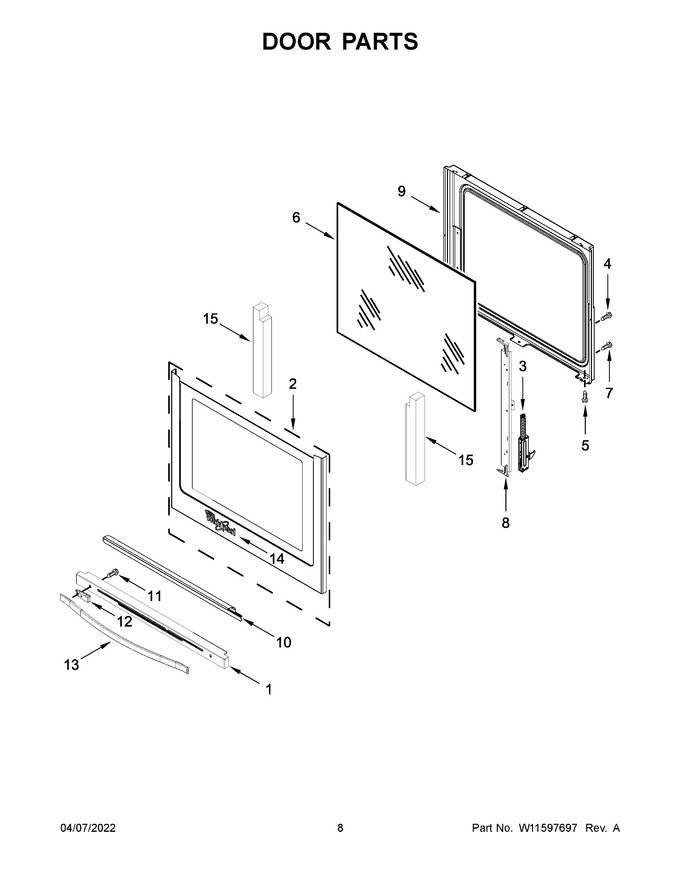

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11205076 | Trim, Door (stainless) (Replaces: W10842333) |
|
$ 121.54 | |||||
| 2 | W10909032 | Assembly, Outer Door (stainless (includes Skin And Badge)) (Replaces: W10844776) |
|
$ 274.73 | |||||
| 3 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 57.42 | ||||
| 4 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 5 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 6 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 227.18 | |||||
| 7 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 8 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 114.64 | |||||
| 9 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 284.15 | ||||
| 10 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 203.18 | ||||
| 11 | W11396735 | Screw (Replaces: W10426267) |
|
$ 12.65 | |||||
| 12 | WPW10410341 | Standoff, Handle (black) (Replaces: W10410341) |
|
$ 69.21 | |||||
| 13 | WPW10618239 | Handle, Door (stainless) (Replaces: W10254687) |
|
Immediately | $ 157.99 | ||||
| 14 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 15 | W11688565 | Insulation, Door (Replaces: W10772958) |
|
$ 22.73 |
