01 - Cover Sheet

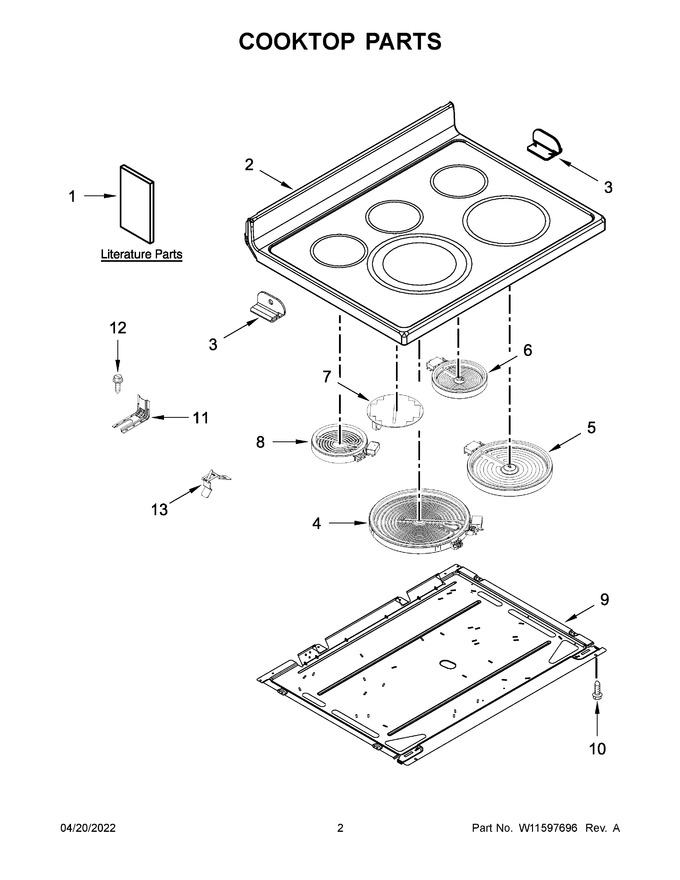

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11489788		Use And Care Guide		Appelez-nous	-
2	W10794931		Cooktop (white)   (Replaces: W10697350)				$ 621.61
3	W10607641		Bracket, Cooktop (left)				$ 28.73
4	W10823727		Element (3000w) (left Front)   (Replaces: W10711900)			Immediately	$ 293.68
5	W11517959		Element (3000/1400w) (right Front)   (Replaces: W10275048)			Immediately	$ 121.00
6	W11171119		Element (1200w) (right Rear)   (Replaces: W10248261)			Immediately	$ 164.01
7	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 113.96
8	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 130.79
9	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 122.99
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
11	W11447673		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.64
12	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
13	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
1A	W11401743		Tech Sheet		Appelez-nous	-
1B	W11489785		Quick Start Guide		Appelez-nous	-
1C	W11340512		Tech Sheet Web		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
NI	W11188425		Harness, Cooktop (left)				$ 168.63
NI	W11188421		Harness, Cooktop (right)			Immediately	$ 183.65
NI	W11747460		Main Harness   (Replaces: W11454489)			Immediately	$ 237.58
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11134592		Harness, Warm Zone				$ 100.51
NI	W11212183		Harness, Sensor				$ 201.98
