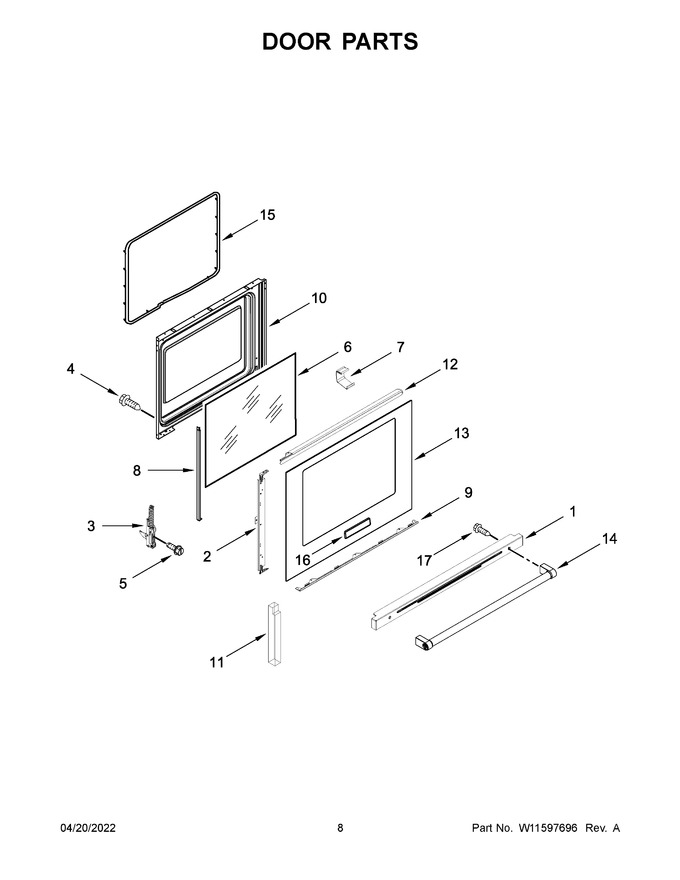

05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10335331 | Trim, Top (white) (Replaces: W10335331) |
|
Immediately | $ 112.82 | ||||
| 2 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 114.64 | |||||
| 3 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 57.42 | ||||
| 4 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 6 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 227.18 | |||||
| 7 | W10137382 | Clip, Panel |
|
Immediately | $ 41.50 | ||||
| 8 | W10334003 | Trim, Side (white) |
|
Immediately | $ 76.12 | ||||
| 9 | WPW10333990 | Trim, Lower Door (white) (Replaces: W10333990) |
|
Immediately | $ 46.71 | ||||
| 10 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 284.15 | ||||
| 11 | W11688565 | Insulation, Door (Replaces: W10772958) |
|
$ 22.73 | |||||
| 12 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 203.18 | ||||
| 13 | WPW10495962 | Glass, Outer Door (white) (Replaces: W10495962) |
|
$ 345.23 | |||||
| 14 | W11104399 | Handle, Door (stainless) (Replaces: W10551000) |
|
$ 203.55 | |||||
| 15 | W11562931 | Gasket, Door (Replaces: W11491752) |
|
Immediately | $ 78.98 | ||||
| 16 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 65.31 | ||||
| 17 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.09 |
