01 - Cover Sheet

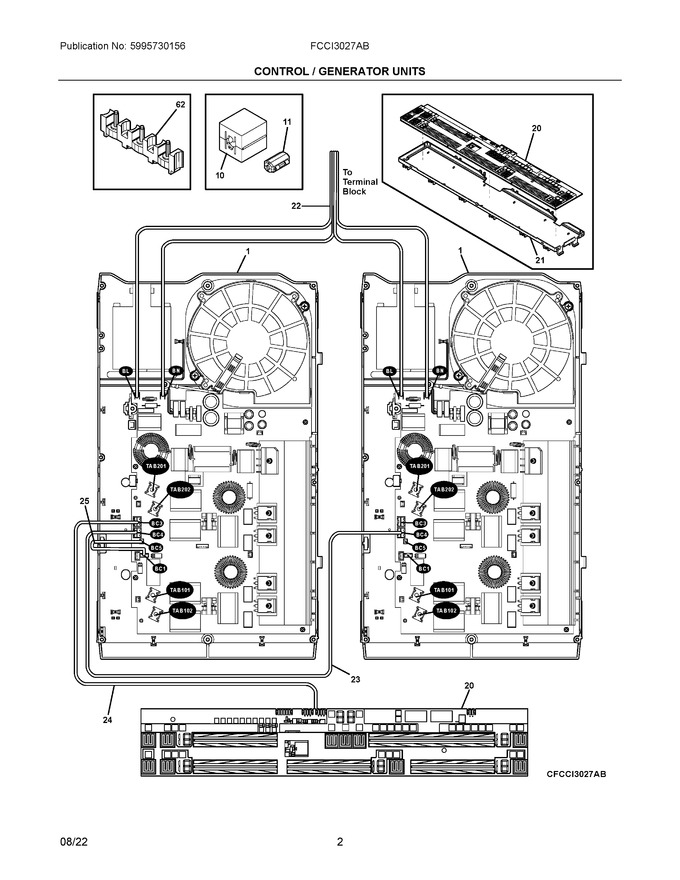

02 - Control / Generator Units
03 - Main Top/surface Units
04 - Wiring Diagram
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 140115392619 | Generator Assembly, Induction, W/electronics (Replaces: 5304527612) |
|
Immediately | $ 404.38 | ||||
| 10 | 5304506076 | Filter, Ferrite Choke |
|
Immediately | $ 42.01 | ||||
| 11 | 5304514339 | Filter, Ferrite Choke |
|
Immediately | $ 39.95 | ||||
| 20 | 561940443 | Control Assembly, User Interface |
|
Immediately | $ 326.95 | ||||
| 21 | 561630814 | Carrier, User Interface |
|
$ 55.67 | |||||
| 22 | 5304527613 | Harness, Wiring, Main |
|
$ 130.44 | |||||
| 23 | 318578332 | Harness, Wiring, Communication, Generators |
|
Immediately | $ 54.35 | ||||
| 24 | 5304531655 | Harness, Wiring, Communication, Ui To Generator (Replaces: 5304531647) |
|
$ 7.79 | |||||
| 25 | 387484500 | Jumper Assembly, Bc1-bc5 |
|
$ 9.61 | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| NI | 5304527611 | Filter Assy, Grounding, W/toroid |
|
- | |||||
| NI | 5304527623 | Harness Assembly, Emc Filter, W/capacitors |
|
$ 88.60 | |||||
| NI | 5304527610 | Box & Wires Assy |
|
- | |||||
| NIA | 305309608 | Screw, M4 |
|
- | |||||
| NIB | 305376201 | Nut, Terminal Block, (2) |
|
- | |||||
| NIC | 5303323140 | Screw, Ground (Replaces: 305452800) |
|
- |
