01 - Cover Sheet
02 - Control / Generator Units

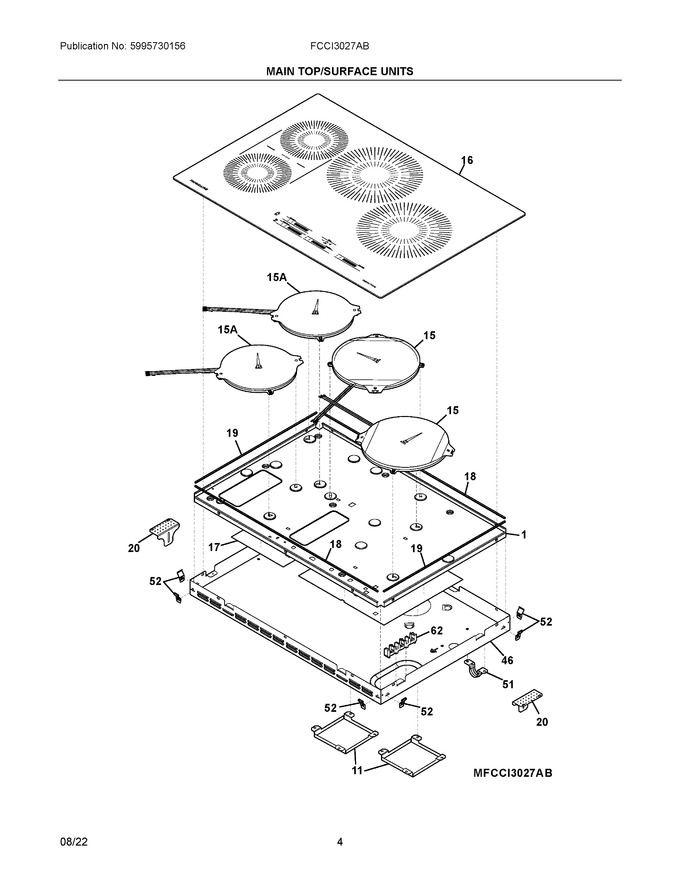

03 - Main Top/surface Units
04 - Wiring Diagram
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304531649 | Carrier, Induction Coils |
|
- | |||||
| 11 | 5304527609 | Cover, Fan |
|
- | |||||
| 15 | 357227574 | Element, Induction Coil, 210 Mm |
|
$ 202.48 | |||||
| 16 | 5304531650 | Maintop, Assembly, Glass/steel, Black |
|
- | |||||
| 17 | 5304531648 | Insulation, Mica Sheet |
|
- | |||||
| 18 | 5304531651 | Tape, Foam, Long |
|
- | |||||
| 19 | 5304531652 | Tape, Foam, Short |
|
- | |||||
| 20 | 5304538915 | Bracket, Installation, Granite Counter (Replaces: 5304527624) |
|
Immediately | $ 5.41 | ||||
| 46 | 5304527608 | Box, Outer |
|
- | |||||
| 51 | 318389600 | Bracket, Conduit Mtg. |
|
$ 12.76 | |||||
| 52 | 387174602 | Bracket, Spring, Cooktop Mtg. |
|
$ 5.67 | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| 15A | 357226370 | Element, Induction Coil, 180 Mm |
|
Immediately | $ 118.11 | ||||
| NI | 305309704 | Screw, St, 4.2 : 12, (9) |
|
- | |||||
| NI | 131243700 | Screw, B4, 2 X 9, 5 (Replaces: 330447900) |
|
$ 3.36 | |||||
| NI | 5304462994 | Screw, 8-32 X 5/16 |
|
- | |||||
| NIA | 131202300 | Screw, 8 X 5/8 (Replaces: 3131048) |
|
Immediately | $ 13.46 | ||||
| NIA | 305376201 | Nut, Terminal Block, (2) |
|
- | |||||
| NIB | 5303307980 | Screw, 8-32 X 0.437, (4) |
|
Immediately | $ 14.18 | ||||
| NIB | 305309608 | Screw, M4 |
|
- | |||||
| NIC | 5303323140 | Screw, Ground (Replaces: 305452800) |
|
- |
