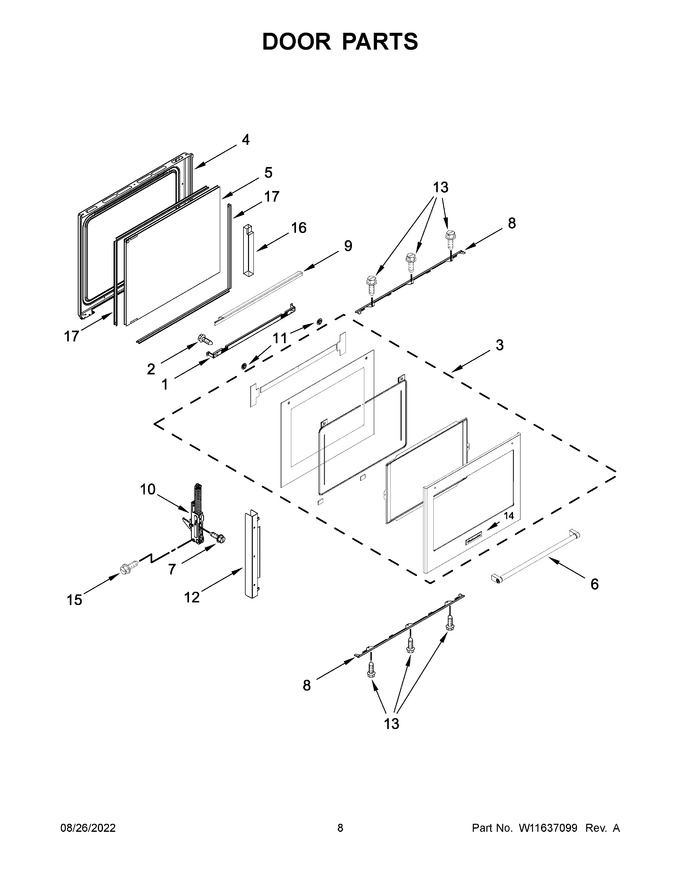

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10541911		Bracket, Glass Upper Handle			Immediately	$ 34.22
2	WP8533988		Screw   (Replaces: 8533988)			Immediately	$ 7.16
3	WPW10634271		Assembly, Outer Door (stainless)   (Replaces: W10634271)				$ 393.26
4	W10902192		Liner, Door   (Replaces: W10826568)				$ 282.60
5	W11339500		Glass, Inner   (Replaces: W11223202)				$ 146.72
6	W11104399		Assembly, Door Handle (stainless)   (Replaces: W10551000)				$ 203.55
7	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.04
8	W10813140		Rail, Horizontal Support			Immediately	$ 151.89
9	W11251351		Scoop, Door (black)   (Replaces: W10613791)			Immediately	$ 119.72
10	W11162113		Hinge, Door (active)   (Replaces: W10885519)			Immediately	$ 111.53
11	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 12.69
12	W11744483		Rail, Vertical Support   (Replaces: W10813139)			Immediately	$ 65.30
13	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
14	W10909682		Nameplate (badge)   (Replaces: W10518672)			Immediately	$ 65.31
15	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.26
16	W11025151		Insulation, Door   (Replaces: W10766562)				$ 189.05
17	W11673273		Glass Spacer   (Replaces: W11379948)			Immediately	$ 26.60
