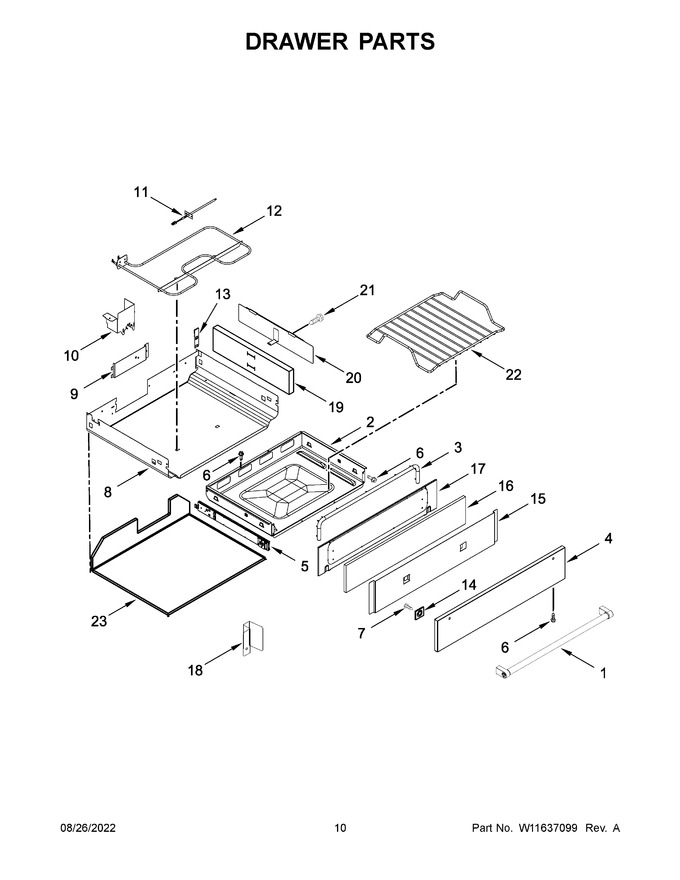

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11104399		Assembly, Door Handle (stainless)   (Replaces: W10551000)				$ 203.55
2	W11036176		Drawer,bake   (Replaces: W10757442)				$ 187.42
3	W10550987		Seal, Drawer				$ 146.03
4	W10861216		Panel, Drawer Front (stainless)   (Replaces: W10541954)			Immediately	$ 195.83
5	W11670722		Slide, Drawer (left)   (Replaces: W10921904)			Immediately	$ 120.65
6	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.26
7	WP8533988		Screw   (Replaces: 8533988)			Immediately	$ 7.16
8	W10634260		Enclosure, Warming			Immediately	$ 179.16
9	W10551025		Cover, Gas Valve		Appelez-nous	-
10	W10634259		Cover, Wire				$ 75.29
11	W10833885		Sensor   (Replaces: W10586204)			Immediately	$ 126.64
12	W10541944		Element, Bake			Immediately	$ 141.31
13	W10551019		Cover, Side				$ 76.36
14	3823F01745		Spacer, Handle		Appelez-nous	-
15	W10551018		Insulation, Drawer Front				$ 96.71
16	W11688515		Insulation, Drawer   (Replaces: W10550982)				$ 102.46
17	W10541947		Panel, Front Inner				$ 147.11
18	W10655446		Shield, Corner				$ 27.81
19	W10550984		Insulation, Drawer Side		Appelez-nous	-
20	W10550985		Retainer, Side Insulation		Appelez-nous	-
21	W11169708		Screw   (Replaces: 3196560)				$ 13.36
22	W10602493		Rack, Bake Drawer				$ 530.62
23	W11688775		Insulation, Bake Drawer Bottom   (Replaces: W10551011)		Appelez-nous	-
5A	W11670723		Slide, Drawer (right)   (Replaces: W10921905)			Immediately	$ 120.65
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
NI	W10550983		Insulation, Retainer Bake Drawer		Appelez-nous	-
NI	W11688782		Insulation, Drawer Top   (Replaces: W10541960)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
