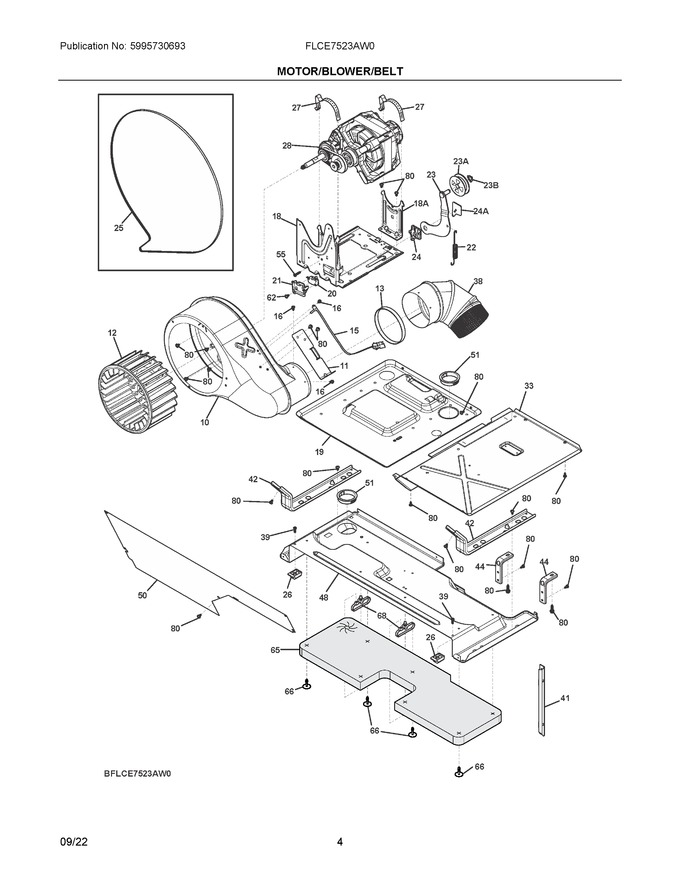

03 - Motor/blower/belt


04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304531898		Housing Assembly, Blower, Air Guide		Appelez-nous	-
11	5304531917		Bracket, L Shape		Appelez-nous	-
12	5304531923		Blower Wheel, Assembly		Appelez-nous	-
13	5304531924		Gasket, Blower, Foam		Appelez-nous	-
15	5304531900		Thermistor, Assembly, Exhaust		Appelez-nous	-
16	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
18	5304531913		Cradle, Motor Mount		Appelez-nous	-
19	5304531902		Pan, Upper Lc, Dryer, Formed		Appelez-nous	-
20	5304531906		Limit Switch, Dryer Belt		Appelez-nous	-
21	5304531915		Bracket, Belt Switch		Appelez-nous	-
22	5304531907		Spring, Idler		Appelez-nous	-
23	5304531925		Idler Arm, Assembly, W/shaft		Appelez-nous	-
24	5304531920		Spacer, Idler, Top		Appelez-nous	-
25	140297473013		Belt, Dryer Drum   (Replaces: 5304531922)		Appelez-nous	-
26	137511300		Block, Support		Appelez-nous	-
27	134242400		Clamp, Motor Mtg.			Immediately	$ 35.76
28	5304531903		Motor, Dryer Overdrive, W/pulley		Appelez-nous	-
33	5304531912		Baffle Assembly, W/felt Seal, And Gasket		Appelez-nous	-
38	5304531921		Elbow, Exhaust Duct		Appelez-nous	-
39	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
41	131091300		Bracket, Support, Side		Appelez-nous	-
42	137304710		Bracket, Marriage, Dryer		Appelez-nous	-
44	3204326		Bracket, L Mounting, Cabinet Rear, External				$ 43.24
48	137329111		Pan, Bottom Lc Dryer		Appelez-nous	-
50	5304524542		Cover Lc Dryer, Support		Appelez-nous	-
51	131453000		Bushing, Snap-in				$ 10.63
55	3205150		Screw, 8-12b X 0.750				$ 3.55
62	131302800		Screw, 10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
65	5304529310		Sound Insulator, Pack, Top		Appelez-nous	-
66	5304529308		Clip, Insulation, Long, Single		Appelez-nous	-
68	5304524498		Zip Tie, (2)		Appelez-nous	-
80	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
18A	5304531914		Support, Cradle, Rear		Appelez-nous	-
23A	5304526207		Pulley, Idler		Appelez-nous	-
23B	5304526209		Clip, Pulley, Retaining		Appelez-nous	-
24A	5304531919		Spacer, Idler, Bottom		Appelez-nous	-
NI	5304531918		Screw, Comb Pan, #10-16 X 0.25		Appelez-nous	-
NI	5304523188		Screw, Hex Wshr Hd Unc, 12-24 X .75, (2)				$ 17.35
NI	134154100		Screw, Hex Washer Head, 10-32 X 0.375, Ground				$ 13.46
NIA	5304531909		Harness, Belt Switch		Appelez-nous	-
NIA	137212300		Gasket, 152 X 13 X 3 Mm		Appelez-nous	-
