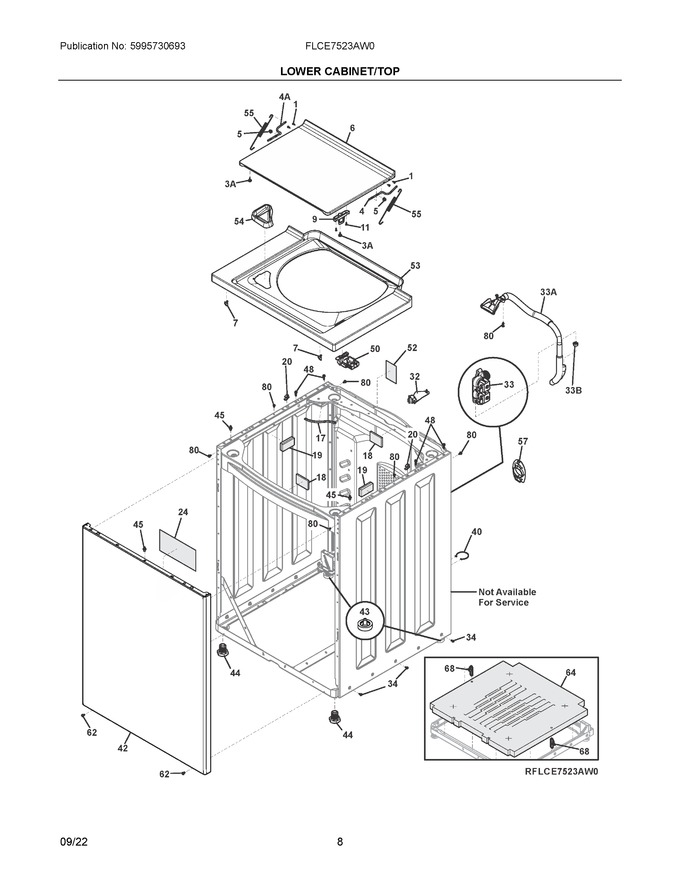

05 - Lower Cabinet/top
06 - Motor/tub
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 134203900 | Screw, Pan Hd Phillips, 6-32 X 0.337, Dog Point |
|
$ 10.85 | |||||
| 4 | 137469900 | Hinge Bar, Rh, Lc |
|
$ 43.24 | |||||
| 5 | 5304488483 | Grommet, Hinge, Acetal |
|
- | |||||
| 6 | 5303212872 | Lid, Washer, White |
|
Immediately | $ 345.16 | ||||
| 7 | 3205821 | Clip, Top-to-front |
|
Immediately | $ 35.44 | ||||
| 9 | 137513712 | Striker, Lid, White |
|
Immediately | $ 13.01 | ||||
| 11 | 3204368 | Screw, Lid Strike Mtg, 6-20b X 0.375 |
|
$ 13.01 | |||||
| 17 | 137360821 | Protector, Edge |
|
$ 12.05 | |||||
| 18 | 5304515730 | Pad, Cushion |
|
- | |||||
| 19 | 5304515731 | Pad, Cushion |
|
- | |||||
| 20 | 3204374 | Pin, Slide, Side To Top |
|
$ 78.67 | |||||
| 24 | 134926600 | Damper, Sound |
|
$ 14.18 | |||||
| 32 | 5304500487 | Bracket, Tubing |
|
- | |||||
| 33 | 5304515818 | Water Valve, Assembly, 2 Coil |
|
Immediately | $ 86.75 | ||||
| 34 | 131205500 | Screw, 1/4-14 X 0.625 |
|
$ 13.46 | |||||
| 40 | 5303309503 | Clip, Drain Hose, Back Sheet |
|
$ 7.09 | |||||
| 42 | 5304501141 | Panel, Front, White, Svc Kit |
|
$ 320.12 | |||||
| 43 | 131422200 | Pad, Self Lvlg Leg, Rear |
|
Immediately | $ 56.70 | ||||
| 44 | 5304532058 | Leg Assembly, Leveling |
|
Immediately | $ 19.97 | ||||
| 45 | 131346401 | Pin, Panel Locator, Front |
|
Immediately | $ 16.63 | ||||
| 48 | 5304523188 | Screw, Hex Wshr Hd Unc, 12-24 X .75, (2) |
|
$ 17.35 | |||||
| 50 | 137353300 | Lock, Lid, External Switch |
|
Immediately | $ 110.66 | ||||
| 52 | 131931202 | Dampener, Vibration, Foam |
|
$ 17.35 | |||||
| 53 | 137190810 | Panel, Washer Top Lc, White |
|
$ 245.32 | |||||
| 54 | 5304488476 | Dispenser, Bleach, Lc |
|
$ 35.44 | |||||
| 55 | 134890500 | Spring, Lid Assist |
|
$ 19.85 | |||||
| 57 | 134641100 | Bracket, Drain Hose Mtg, Rear |
|
$ 19.85 | |||||
| 62 | 131302800 | Screw, 10-16ab X 0.500 (Replaces: 131258400) |
|
Immediately | $ 26.58 | ||||
| 64 | 5304524476 | Sound Insulator, Pack, Bottom |
|
$ 118.56 | |||||
| 68 | 5304524498 | Zip Tie, (2) |
|
- | |||||
| 80 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 33A | 5304533220 | Fill Hose, Assembly |
|
Immediately | $ 30.25 | ||||
| 33B | 5304488479 | Clamp |
|
Immediately | $ 32.09 | ||||
| 3A | 134075500 | Bumper, Lid, White, Front |
|
$ 17.35 | |||||
| 4A | 137470900 | Hinge Bar, Lh, Lc |
|
$ 43.24 | |||||
| NI | 5304523160 | Wiring Harness, Main, Washer |
|
$ 98.08 | |||||
| NIA | 134154100 | Screw, Hex Washer Head, 10-32 X 0.375, Ground |
|
$ 13.46 | |||||
| NIAA | 131731500 | Fastener, Ratchet |
|
$ 17.01 |
