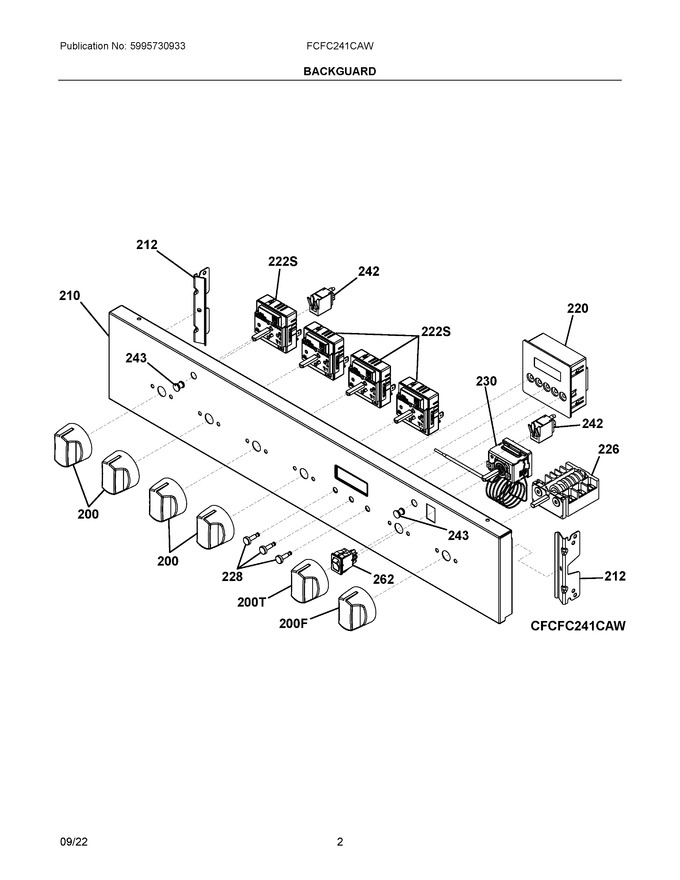

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
200	A14169201		Knob, Surface Switch, White				$ 29.22
210	342840441		Panel, Control, White		Appelez-nous	-
212	342610701		Support, Control Panel		Appelez-nous	-
220	A02169805		Pc Board, Assembly, User Interface				$ 334.33
226	342153201		Switch, Oven Selector				$ 82.58
228	342557313		Knob, User Interface, White				$ 11.42
230	A18548401		Thermostat, Oven			Immediately	$ 78.26
242	318369501		Lamp, Indicator			Immediately	$ 67.62
243	318044511		Lens, Indicator Light			Immediately	$ 25.66
262	A03134601		Switch, Oven Lamp, White		Appelez-nous	-
200F	A19701104		Knob, Selector, White, Oven				$ 24.26
200T	A19701204		Knob, Temperature, White, Oven		Appelez-nous	-
222S	A17374103		Switch, Surface Unit			Immediately	$ 76.41

    View Diagram in Separate Window       Print Part List
