SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram

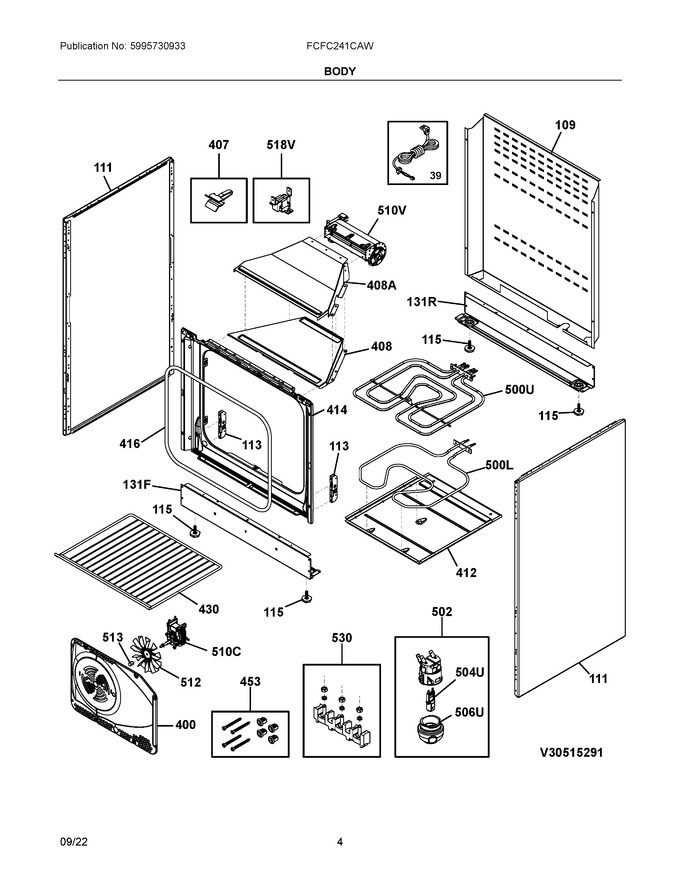

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
39	318113111		Cord, Electric				$ 95.55
109	140021726041		Panel, Rear		Appelez-nous	-
111	A02114902		Panel, Side, White				$ 155.47
113	A05102101		Receptacle, Hinge, Door		Appelez-nous	-
115	A02244101		Foot, Cabinet, Adjustable				$ 77.41
400	342179026		Panel, Back, Convection Fan		Appelez-nous	-
407	354305101		Clip, Bulb, Oven Thermostat		Appelez-nous	-
408	353195608		Air Channel, Lower		Appelez-nous	-
412	342182502		Cover, Lower Element		Appelez-nous	-
414	342397603		Frame, Oven Front				$ 138.02
416	357732201		Seal, Oven Door				$ 65.23
430	8583546595023		Rack, Oven, 422.8x347mm   (Replaces: 354659502)				$ 48.20
453	5029303600		Kit, Bushing, (4 Pcs), W/screws			Immediately	$ 19.11
502	A07202302		Lamp Assembly, Oven, W/bulb				$ 36.86
512	358196098		Blade, Convection Fan				$ 38.28
513	354321001		Nut, Fan Blade, Convection		Appelez-nous	-
530	405538919		Kit, Terminal Block				$ 37.93
131F	A02827002		Toe Plate, Front, White				$ 76.69
131R	A02827004		Panel, Filler, Lower Rear				$ 79.78
408A	353223903		Cover, Air Channel		Appelez-nous	-
500L	A04163901		Element, Heating, Lower				$ 101.93
500U	A04164101		Element, Heating, Upper, Combi			Immediately	$ 156.92
504U	808564103		Bulb, Oven Lamp, G9, 25w, 120v		Appelez-nous	-
506U	A21715401		Lens, Oven Lamp				$ 40.36
510C	A11046301		Motor, Convection Fan				$ 160.06
510V	808962602		Blower Assembly, Cooling, 13w, 240v				$ 210.06
518V	330208111		Thermostat, Protection, Overheating				$ 108.14
NI	342930902		Weight, Counter		Appelez-nous	-
NI	342176001		Support, Corner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
